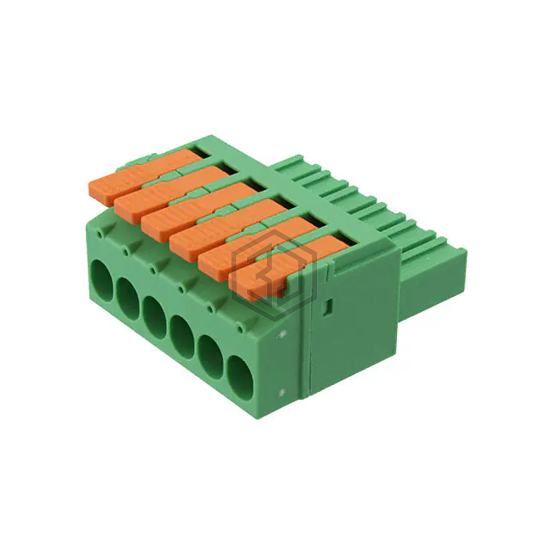

TERM BLOCK PLUG 7.62MM 6POS
1716926 is a Terminal Blocks - Headers, Plugs and Sockets manufactured by Phoenix Contact. TERM BLOCK PLUG 7.62MM 6POS. Key specifications: mounting type Free Hanging (In-Line), operating temperature -40°C, color Green, termination style Screwless - Push-In Spring.
In Stock: 44
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Plug, Female Sockets |
| Number of Positions | 6 |
| Positions Per Level | 6 |
| Number of Levels | 1 |
| Pitch | 0.300" (7.62mm) |
| Header Orientation | - |
| Plug Wire Entry | 180° |
| Termination Style | Screwless - Push-In Spring |
| Mounting Type | Free Hanging (In-Line) |
| Current - IEC | 41A |
| Voltage - IEC | 1 kV |
| Current - UL | 35 A |
| Voltage - UL | 600 V |
| Wire Gauge or Range - AWG | 8-18 AWG |
| Wire Gauge or Range - mm² | 0.75-10mm² |
| Color | Green |
| Operating Temperature | -40°C |
| Contact Mating Finish | Tin |
| Features | Lever Actuated |
Submit your RFQ for 1716926 and get a quote within 24 hours.
