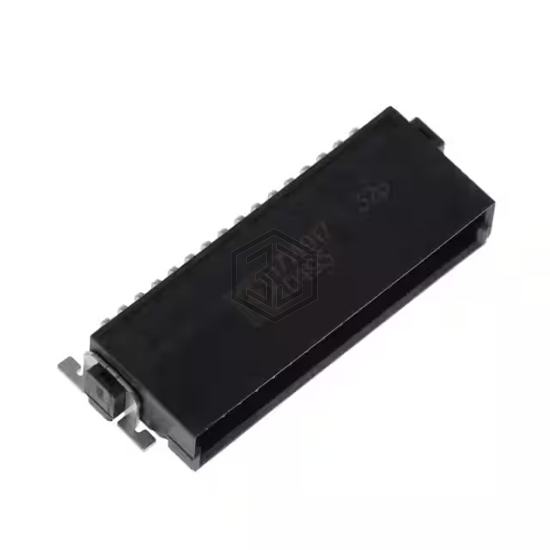

CONN HEADER 1.27MM 32POS SMD RA
1714917 is a Rectangular Connectors - Headers, Male Pins manufactured by Phoenix Contact. CONN HEADER 1.27MM 32POS SMD RA. Key specifications: mounting type Surface Mount, Right Angle, operating temperature -55°C ~ 125°C, voltage rating 500V, contact material Copper Alloy.
In Stock: 948
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.050" (1.27mm) |
| Number of Positions | 32 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.050" (1.27mm) |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Surface Mount, Right Angle |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.157" (4.00mm) |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.165" (4.20mm) |
| Contact Shape | Rectangular |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | - |
| Contact Material | Copper Alloy |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Features | Board Guide, Solder Retention |
| Operating Temperature | -55°C ~ 125°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 1.4A |
| Voltage Rating | 500V |
Submit your RFQ for 1714917 and get a quote within 24 hours.
