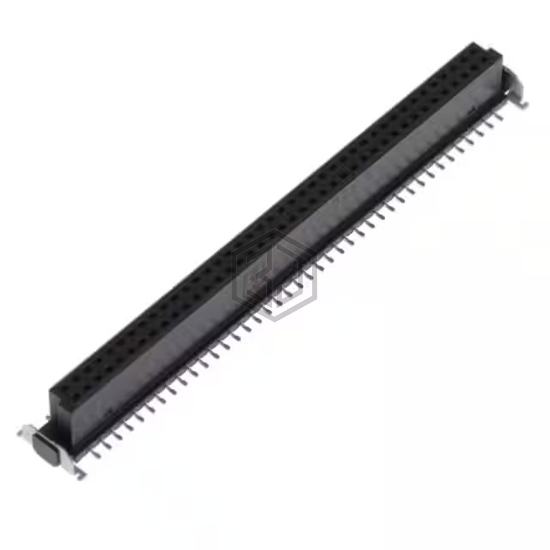

CONN RECEPTACLE 1.27MM 80POS SMD
1714901 is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by Phoenix Contact. CONN RECEPTACLE 1.27MM 80POS SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage rating 500V, current rating (amps) 1.4A.
In Stock: 515
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board or Cable |
| Number of Positions | 80 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.050" (1.27mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.050" (1.27mm) |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | - |
| Insulation Color | Black |
| Insulation Height | 0.246" (6.25mm) |
| Contact Length - Post | - |
| Operating Temperature | -55°C ~ 125°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | 8mm, 9.5mm |
| Ingress Protection | - |
| Features | Board Guide, Solder Retention |
| Current Rating (Amps) | 1.4A |
| Voltage Rating | 500V |
