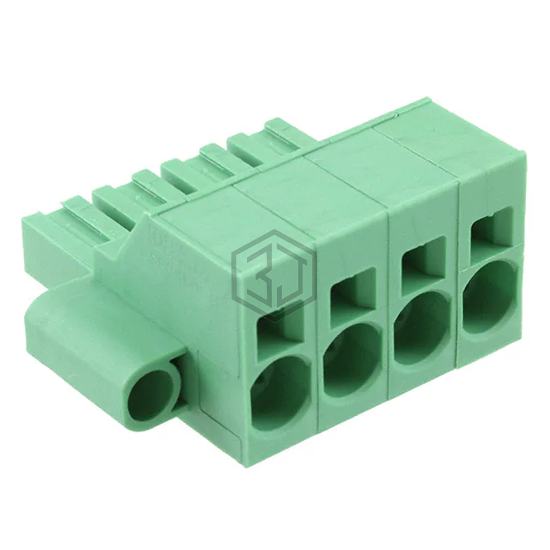

TERM BLOCK PLUG 4POS STR 10.16MM
1711394 is a Terminal Blocks - Headers, Plugs and Sockets manufactured by Phoenix Contact. TERM BLOCK PLUG 4POS STR 10.16MM. Key specifications: mounting type Free Hanging (In-Line), color Green, termination style Screwless - Spring Cage, Tension Clamp, number of positions 4.
In Stock: 193
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Plug, Female Sockets |
| Number of Positions | 4 |
| Positions Per Level | 4 |
| Number of Levels | 1 |
| Pitch | 0.400" (10.16mm) |
| Header Orientation | - |
| Plug Wire Entry | 180° |
| Termination Style | Screwless - Spring Cage, Tension Clamp |
| Mounting Type | Free Hanging (In-Line) |
| Current - IEC | 76A |
| Voltage - IEC | 1 kV |
| Current - UL | 66 A |
| Voltage - UL | 600 V |
| Wire Gauge or Range - AWG | 4-20 AWG |
| Wire Gauge or Range - mm² | 0.75-16mm² |
| Color | Green |
| Operating Temperature | - |
| Contact Mating Finish | Silver |
| Features | Mating Flange |
Submit your RFQ for 1711394 and get a quote within 24 hours.
