1703506
TERM BLK HEADER 7POS GREEN

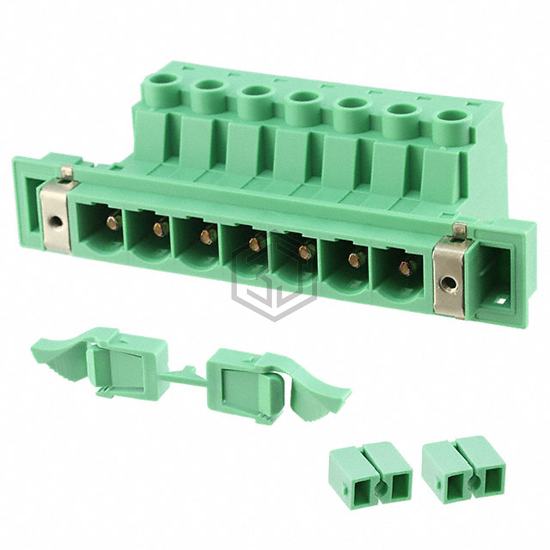

1703506 is a Terminal Blocks - Panel Mount manufactured by Phoenix Contact. TERM BLK HEADER 7POS GREEN. Key specifications: color Green, wire gauge 6-20 AWG, pitch 0.400" (10.16mm).
In Stock: 3
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Front Panel Wire Connection | Header, Male Pins |
| Rear Panel Wire Connection | Bolt/Screw Clamp - Wire Entry Parallel to Panel |
| Width | 4.192" (106.48mm) |
| Panel Thickness | 0.039 ~ 0.118" (1.0 ~ 3.0mm) |
| Positions Per Level | 7 |
| Panel Mount Type | 2 Piece, Snap Lock - Front Flange |
| Pitch | 0.400" (10.16mm) |
| Voltage - UL | 600 V |
| Current - UL | 55 A |
| Wire Gauge | 6-20 AWG |
| Color | Green |
| Features | Threaded Mating Lock, Shield Connection Front Side |
| Number of Levels | 1 |
Frequently Asked Questions
1703506 is a Terminal Blocks - Panel Mount manufactured by Phoenix Contact. TERM BLK HEADER 7POS GREEN
The color of 1703506 is Green.
The wire or cable specification of 1703506 is 6-20 AWG.
The pitch of 1703506 is 0.400" (10.16mm).
