AC/DC CONVERTER 30.5V

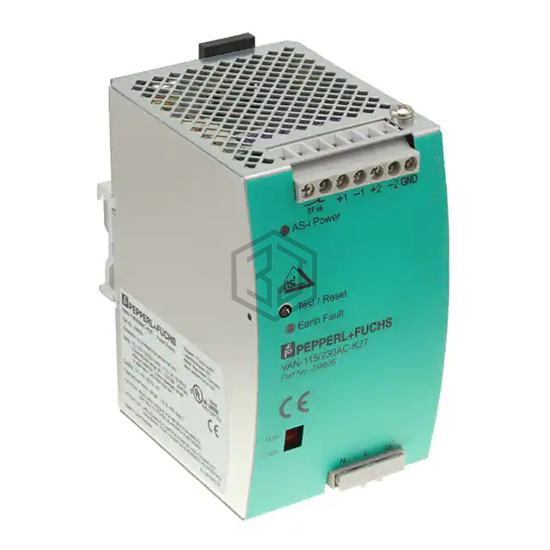

VAN-115/230AC-K27 is a Industrial, DIN Rail Power Supplies manufactured by Pepperl+Fuchs, Inc.. AC/DC CONVERTER 30.5V. Key specifications: operating temperature -10°C ~ 70°C (With Derating), current - output (max) 4A, size / dimension 4.02" L x 2.87" W x 4.88" H (102.0mm x 73.0mm x 124.0mm), number of outputs 1.
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC or DC |
| Number of Outputs | 1 |
| AC Voltage - Input | 85 ~ 132 VAC, 184 ~ 264 VAC |
| DC Voltage - Input (Min) | 240V |
| DC Voltage - Input (Max) | 300V |
| Voltage - Output 1 | 30.5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 4A |
| Power (Watts) | - |
| Voltage - Isolation | - |
| Applications | ITE (Commercial) |
| Efficiency | 90% |
| Operating Temperature | -10°C ~ 70°C (With Derating) |
| Features | IP20 |
| Size / Dimension | 4.02" L x 2.87" W x 4.88" H (102.0mm x 73.0mm x 124.0mm) |
| Approval Agency | CE, cULus |
| Standard Number | - |
Submit your RFQ for VAN-115/230AC-K27 and get a quote within 24 hours.
