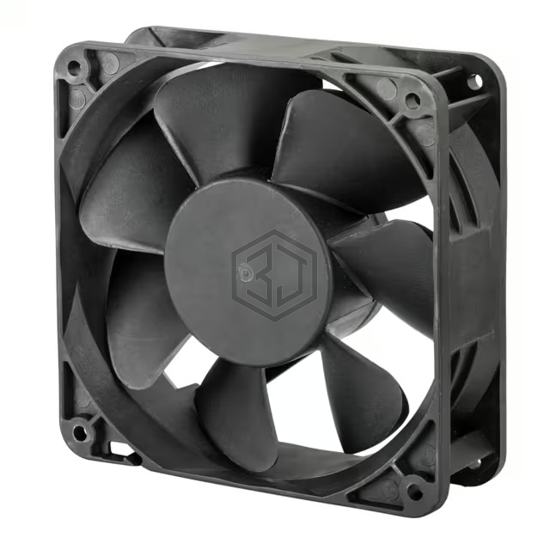

120X120X38MM INTELLIGENT MOTION
R1238L12BPLB2A is a DC Brushless Fans (BLDC) manufactured by Pelonis Technologies. 120X120X38MM INTELLIGENT MOTION. Key specifications: operating temperature 14 ~ 158°F (-10 ~ 70°C), voltage - rated 12VDC, size / dimension Square - 120mm L x 120mm H, termination 3 Wire Leads.
In Stock: 40
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Rated | 12VDC |
| Size / Dimension | Square - 120mm L x 120mm H |
| Width | 38.00mm |
| Air Flow | 104.4 CFM (2.96m³/min) |
| Static Pressure | 0.290 in H2O (72.2 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Auto Restart, Constant Speed, Inrush Protection, Locked Rotor Protection, Polarity Protection, Speed Sensor (Tach) |
| Noise | 39.8dB(A) |
| Power (Watts) | 3.6 W |
| RPM | 2600 RPM |
| Termination | 3 Wire Leads |
| Ingress Protection | - |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Approval Agency | CE, cUL, UL |
| Weight | - |
Submit your RFQ for R1238L12BPLB2A and get a quote within 24 hours.
