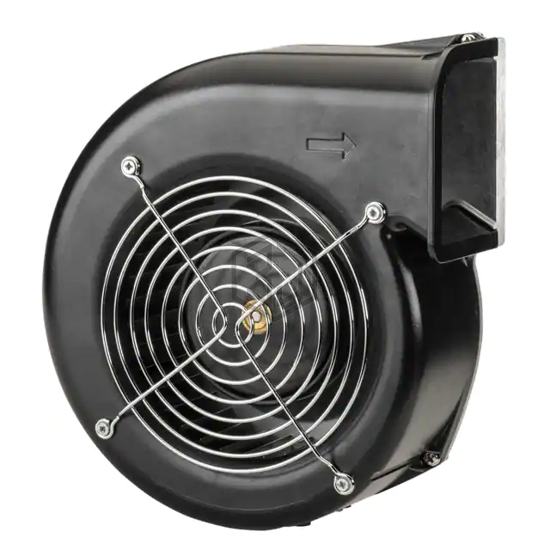

193X177X72MM TITAN SERIES 12V DC
P1970M12BALA2A-38 is a DC Brushless Fans (BLDC) manufactured by Pelonis Technologies. 193X177X72MM TITAN SERIES 12V DC. Key specifications: operating temperature 14 ~ 158°F (-10 ~ 70°C), voltage - rated 12VDC, size / dimension Rectangular/Round - 193mm L x 177mm H, termination 3 Wire Leads.
In Stock: 8
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Rated | 12VDC |
| Size / Dimension | Rectangular/Round - 193mm L x 177mm H |
| Width | 72.00mm |
| Air Flow | 106.4 CFM (3.01m³/min) |
| Static Pressure | 1.400 in H2O (348.7 Pa) |
| Bearing Type | Ball |
| Fan Type | Blower |
| Features | Auto Restart, Locked Rotor Protection, Polarity Protection, Speed Sensor (Tach) |
| Noise | 50.7dB(A) |
| Power (Watts) | 28.8 W |
| RPM | 1500 RPM |
| Termination | 3 Wire Leads |
| Ingress Protection | - |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Approval Agency | CE, cUL, UL |
| Weight | - |
Submit your RFQ for P1970M12BALA2A-38 and get a quote within 24 hours.
