120X120X32MM TITAN SERIES 12V DC

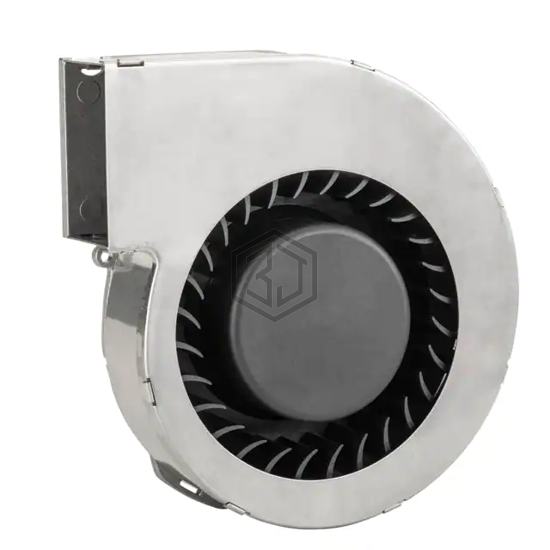

P1232H12BALB2A-28 is a DC Brushless Fans (BLDC) manufactured by Pelonis Technologies. 120X120X32MM TITAN SERIES 12V DC. Key specifications: operating temperature 14 ~ 158°F (-10 ~ 70°C), voltage - rated 12VDC, size / dimension Rectangular/Round - 120mm L x 120mm H, termination 3 Wire Leads.
In Stock: 10
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Rated | 12VDC |
| Size / Dimension | Rectangular/Round - 120mm L x 120mm H |
| Width | 32.00mm |
| Air Flow | 33.0 CFM (0.93m³/min) |
| Static Pressure | 1.200 in H2O (298.9 Pa) |
| Bearing Type | Ball |
| Fan Type | Blower |
| Features | Auto Restart, Locked Rotor Protection, Polarity Protection, Speed Sensor (Tach) |
| Noise | 54.8dB(A) |
| Power (Watts) | 11.28 W |
| RPM | 4000 RPM |
| Termination | 3 Wire Leads |
| Ingress Protection | - |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Approval Agency | CE, cUL, UL |
| Weight | - |
