53X53X31MM TITAN SERIES 12V DC B

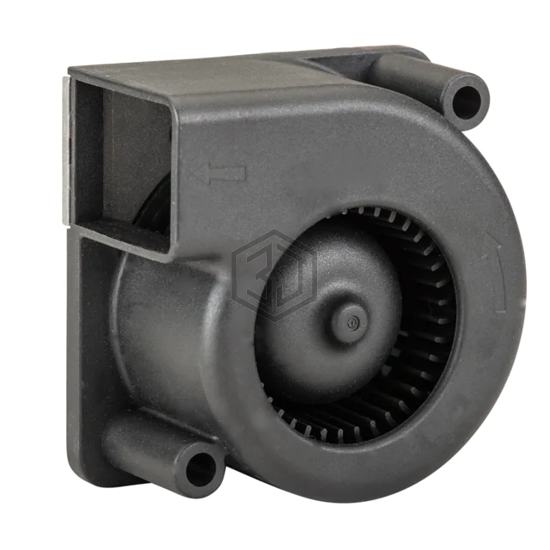

K5331Y12BALB2A-37 is a DC Brushless Fans (BLDC) manufactured by Pelonis Technologies. 53X53X31MM TITAN SERIES 12V DC B. Key specifications: operating temperature 14 ~ 158°F (-10 ~ 70°C), voltage - rated 12VDC, size / dimension Rectangular/Round - 53mm L x 53mm H, termination 3 Wire Leads.
In Stock: 19
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Rated | 12VDC |
| Size / Dimension | Rectangular/Round - 53mm L x 53mm H |
| Width | 31.00mm |
| Air Flow | 16.3 CFM (0.46m³/min) |
| Static Pressure | 1.430 in H2O (356.2 Pa) |
| Bearing Type | Ball |
| Fan Type | Blower |
| Features | Auto Restart, Locked Rotor Protection, Polarity Protection, Speed Sensor (Tach) |
| Noise | 52.5dB(A) |
| Power (Watts) | 12.6 W |
| RPM | 12000 RPM |
| Termination | 3 Wire Leads |
| Ingress Protection | - |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Approval Agency | CE, cUL, UL |
| Weight | - |
Submit your RFQ for K5331Y12BALB2A-37 and get a quote within 24 hours.
