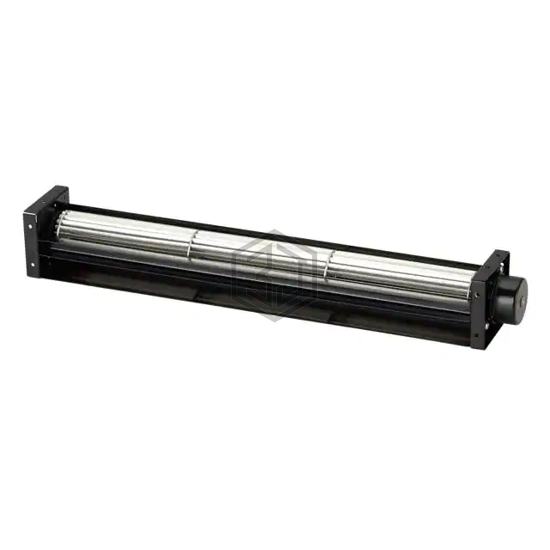

JL3-PE03019A24H-3B - Pelonis Technologies - DC Brushless Fans (BLDC)

JL3-PE03019A24H-3B

Pelonis Technologies

247MMLX 50WX48H 24V DC J-SERIES

JL3-PE03019A24H-3B is a DC Brushless Fans (BLDC) manufactured by Pelonis Technologies. 247MMLX 50WX48H 24V DC J-SERIES. Key specifications: operating temperature 14 ~ 158°F (-10 ~ 70°C), voltage - rated 24VDC, size / dimension Rectangular - 247mm L x 48mm H, termination 2 Wire Leads.

In Stock: 270

Product Attributes

AttributeValue
Product StatusActive
Voltage - Rated24VDC
Size / DimensionRectangular - 247mm L x 48mm H
Width50.00mm
Air Flow56.0 CFM (1.6m³/min)
Static Pressure0.190 in H2O (46.1 Pa)
Bearing TypeBall
Fan TypeBlower, Cross Flow
FeaturesAuto Restart, Locked Rotor Protection, Polarity Protection
Noise46.0dB(A)
Power (Watts)6 W
RPM4500 RPM
Termination2 Wire Leads
Ingress Protection-
Operating Temperature14 ~ 158°F (-10 ~ 70°C)
Approval AgencyCE, cUL, UL
Weight-

Frequently Asked Questions

JL3-PE03019A24H-3B is a DC Brushless Fans (BLDC) manufactured by Pelonis Technologies. 247MMLX 50WX48H 24V DC J-SERIES

The operating temperature range of JL3-PE03019A24H-3B is 14 ~ 158°F (-10 ~ 70°C).

The supply voltage of JL3-PE03019A24H-3B is 24VDC.

The size of JL3-PE03019A24H-3B is Rectangular - 247mm L x 48mm H.
