172X150X51MM INTELLIGENT MOTION

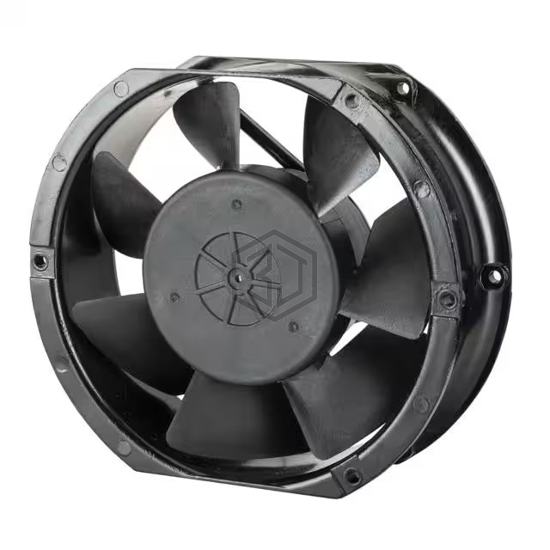

G1751Y48BALB2B-7 is a DC Brushless Fans (BLDC) manufactured by Pelonis Technologies. 172X150X51MM INTELLIGENT MOTION. Key specifications: operating temperature 14 ~ 158°F (-10 ~ 70°C), voltage - rated 48VDC, size / dimension Rectangular/Round - 172mm L x 150mm H, termination 2 Wire Leads.
In Stock: 20
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Rated | 48VDC |
| Size / Dimension | Rectangular/Round - 172mm L x 150mm H |
| Width | 51.00mm |
| Air Flow | 323.0 CFM (9.15m³/min) |
| Static Pressure | 0.850 in H2O (211.7 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Auto Restart, Constant Speed, Inrush Protection, Locked Rotor Protection, Polarity Protection, Rotation Detection |
| Noise | 58.9dB(A) |
| Power (Watts) | 29.9 W |
| RPM | 3500 RPM |
| Termination | 2 Wire Leads |
| Ingress Protection | - |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Approval Agency | CE, cUL, UL |
| Weight | - |
Submit your RFQ for G1751Y48BALB2B-7 and get a quote within 24 hours.
