172X150X51MM INTELLIGENT MOTION

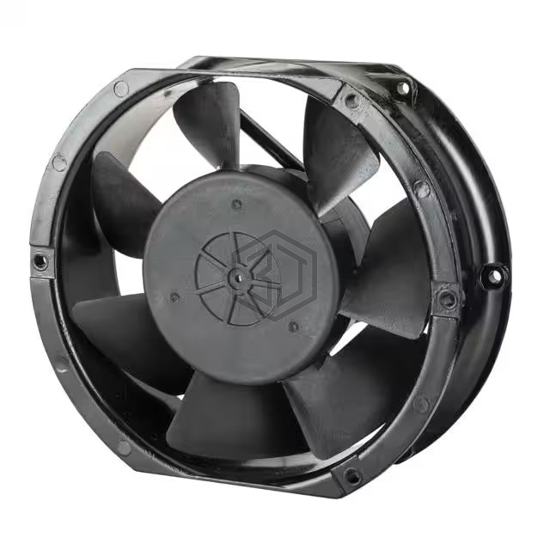

G1751H24BALB1-7 is a DC Brushless Fans (BLDC) manufactured by Pelonis Technologies. 172X150X51MM INTELLIGENT MOTION. Key specifications: operating temperature 14 ~ 158°F (-10 ~ 70°C), voltage - rated 24VDC, size / dimension Rectangular/Round - 172mm L x 150mm H, termination 2 Wire Leads.
In Stock: 53
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Rated | 24VDC |
| Size / Dimension | Rectangular/Round - 172mm L x 150mm H |
| Width | 51.00mm |
| Air Flow | 267.7 CFM (7.58m³/min) |
| Static Pressure | 0.590 in H2O (146.9 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Auto Restart, Constant Speed, Inrush Protection, Locked Rotor Protection, Polarity Protection |
| Noise | 54.1dB(A) |
| Power (Watts) | 17.76 W |
| RPM | 2900 RPM |
| Termination | 2 Wire Leads |
| Ingress Protection | - |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Approval Agency | CE, cUL, UL |
| Weight | - |
Submit your RFQ for G1751H24BALB1-7 and get a quote within 24 hours.
