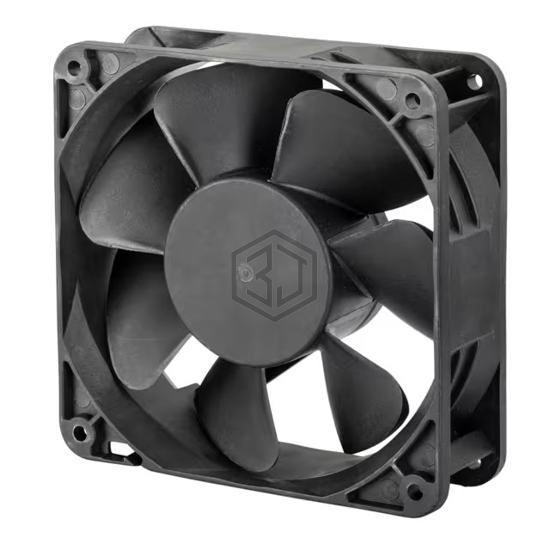

G1238L24BPLB5 - Pelonis Technologies - DC Brushless Fans (BLDC)

G1238L24BPLB5

Pelonis Technologies

120X120X38MM INTELLIGENT MOTION

G1238L24BPLB5 is a DC Brushless Fans (BLDC) manufactured by Pelonis Technologies. 120X120X38MM INTELLIGENT MOTION. Key specifications: operating temperature 14 ~ 158°F (-10 ~ 70°C), voltage - rated 24VDC, size / dimension Square - 120mm L x 120mm H, termination 5 Wire Leads.

In Stock: 440

Product Attributes

AttributeValue
Product StatusActive
Voltage - Rated24VDC
Size / DimensionSquare - 120mm L x 120mm H
Width38.00mm
Air Flow102.8 CFM (2.91m³/min)
Static Pressure0.280 in H2O (69.7 Pa)
Bearing TypeBall
Fan TypeTubeaxial
FeaturesAuto Restart, Constant Speed, Inrush Protection, Locked Rotor Protection, Polarity Protection, Rotation Detection, RPWM
Noise39.6dB(A)
Power (Watts)3.12 W
RPM2600 RPM
Termination5 Wire Leads
Ingress Protection-
Operating Temperature14 ~ 158°F (-10 ~ 70°C)
Approval AgencyCE, cUL, UL
Weight-

Frequently Asked Questions

G1238L24BPLB5 is a DC Brushless Fans (BLDC) manufactured by Pelonis Technologies. 120X120X38MM INTELLIGENT MOTION

The operating temperature range of G1238L24BPLB5 is 14 ~ 158°F (-10 ~ 70°C).

The supply voltage of G1238L24BPLB5 is 24VDC.

The size of G1238L24BPLB5 is Square - 120mm L x 120mm H.
