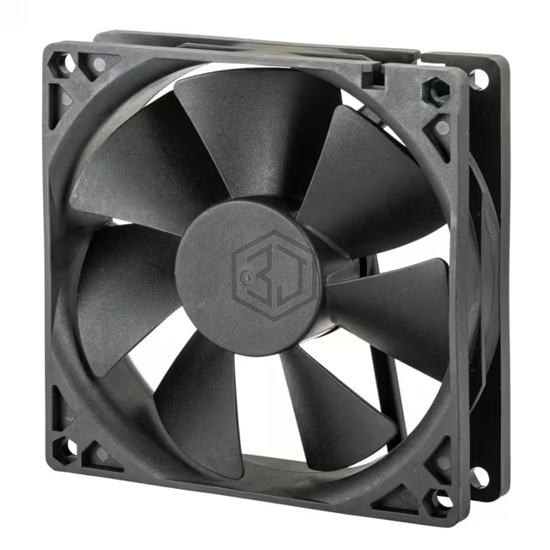

92X92X25MM INTELLIGENT MOTION SE
C9225H24BPLB2B is a DC Brushless Fans (BLDC) manufactured by Pelonis Technologies. 92X92X25MM INTELLIGENT MOTION SE. Key specifications: operating temperature 14 ~ 158°F (-10 ~ 70°C), voltage - rated 24VDC, size / dimension Square - 92mm L x 92mm H, termination 3 Wire Leads.
In Stock: 115
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Rated | 24VDC |
| Size / Dimension | Square - 92mm L x 92mm H |
| Width | 25.00mm |
| Air Flow | 55.7 CFM (1.58m³/min) |
| Static Pressure | 0.160 in H2O (39.9 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Auto Restart, Constant Speed, Inrush Protection, Locked Rotor Protection, Polarity Protection, Rotation Detection |
| Noise | 35.7dB(A) |
| Power (Watts) | 2.9 W |
| RPM | 3000 RPM |
| Termination | 3 Wire Leads |
| Ingress Protection | - |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Approval Agency | CE, cUL, UL |
| Weight | - |
Submit your RFQ for C9225H24BPLB2B and get a quote within 24 hours.
