80X80X15MM INTELLIGENT MOTION SE

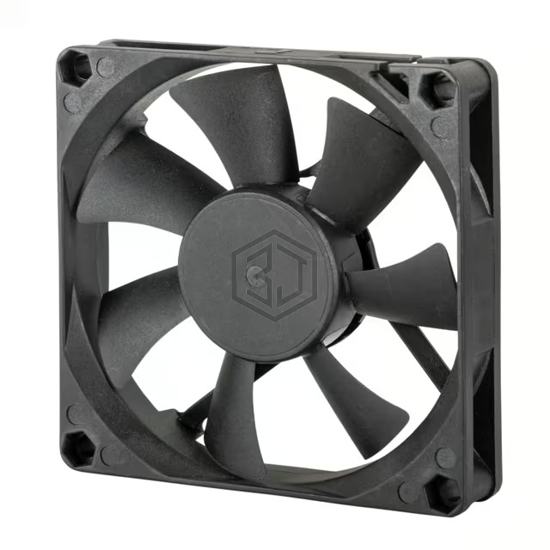

C8015L12BPLP1-7 is a DC Brushless Fans (BLDC) manufactured by Pelonis Technologies. 80X80X15MM INTELLIGENT MOTION SE. Key specifications: operating temperature 14 ~ 158°F (-10 ~ 70°C), voltage - rated 12VDC, size / dimension Square - 80mm L x 80mm H, termination 2 Wire Leads.
In Stock: 112
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Rated | 12VDC |
| Size / Dimension | Square - 80mm L x 80mm H |
| Width | 15.00mm |
| Air Flow | 26.1 CFM (0.74m³/min) |
| Static Pressure | 0.070 in H2O (17.4 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Auto Restart, Constant Speed, Inrush Protection, Locked Rotor Protection, Polarity Protection |
| Noise | 27.2dB(A) |
| Power (Watts) | 960 mW |
| RPM | 2400 RPM |
| Termination | 2 Wire Leads |
| Ingress Protection | - |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Approval Agency | CE, cUL, UL |
| Weight | - |
Submit your RFQ for C8015L12BPLP1-7 and get a quote within 24 hours.
