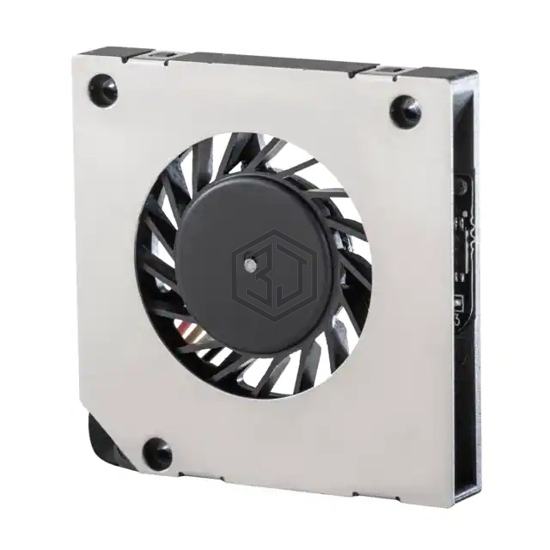

AGB304 - Pelonis Technologies - DC Brushless Fans (BLDC)

AGB304

Pelonis Technologies

30X30X4MM AIR-G SERIES 5V MICRO

AGB304 is a DC Brushless Fans (BLDC) manufactured by Pelonis Technologies. 30X30X4MM AIR-G SERIES 5V MICRO. Key specifications: operating temperature 14 ~ 140°F (-10 ~ 60°C), voltage - rated 5VDC, size / dimension Square - 30mm L x 30mm H, termination 2 Wire Leads.

In Stock: 208

Product Attributes

AttributeValue
Product StatusActive
Voltage - Rated5VDC
Size / DimensionSquare - 30mm L x 30mm H
Width4.00mm
Air Flow0.870 CFM (0.025m³/min)
Static Pressure0.263 in H2O (65.4 Pa)
Bearing TypeAxial Groove
Fan TypeMicro Blower
FeaturesLocked Rotor Protection, Auto Restart, Polarity Protection
Noise36.0dB(A)
Power (Watts)-
RPM8500 RPM
Termination2 Wire Leads
Ingress ProtectionIP58 - Dust Protected, Waterproof
Operating Temperature14 ~ 140°F (-10 ~ 60°C)
Approval AgencyCE
Weight0.01 lb (4.54 g)

Frequently Asked Questions

AGB304 is a DC Brushless Fans (BLDC) manufactured by Pelonis Technologies. 30X30X4MM AIR-G SERIES 5V MICRO

The operating temperature range of AGB304 is 14 ~ 140°F (-10 ~ 60°C).

The supply voltage of AGB304 is 5VDC.

The size of AGB304 is Square - 30mm L x 30mm H.
