26X20X8MM AIR-G SERIES 5V MICRO

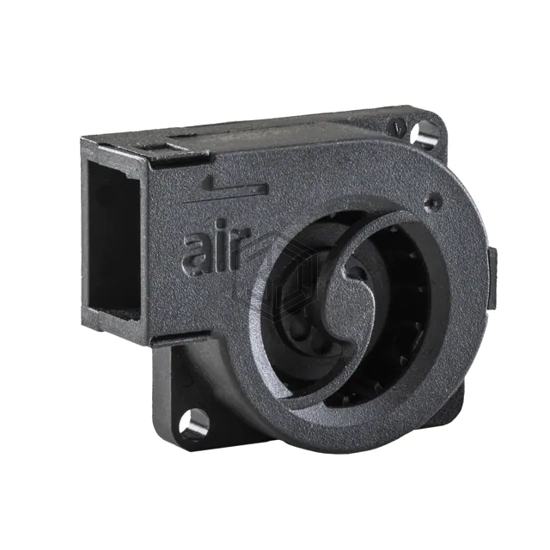

AGB208 is a DC Brushless Fans (BLDC) manufactured by Pelonis Technologies. 26X20X8MM AIR-G SERIES 5V MICRO. Key specifications: operating temperature 14 ~ 140°F (-10 ~ 60°C), voltage - rated 5VDC, size / dimension Rectangular - 26mm L x 20mm H, termination 2 Wire Leads.
In Stock: 21
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Rated | 5VDC |
| Size / Dimension | Rectangular - 26mm L x 20mm H |
| Width | 8.00mm |
| Air Flow | 0.570 CFM (0.016m³/min) |
| Static Pressure | 0.186 in H2O (46.3 Pa) |
| Bearing Type | Axial Groove |
| Fan Type | Micro Blower |
| Features | Locked Rotor Protection, Auto Restart, Polarity Protection |
| Noise | 35.0dB(A) |
| Power (Watts) | - |
| RPM | 9000 RPM |
| Termination | 2 Wire Leads |
| Ingress Protection | IP58 - Dust Protected, Waterproof |
| Operating Temperature | 14 ~ 140°F (-10 ~ 60°C) |
| Approval Agency | CE |
| Weight | 0.007 lb (3.18 g) |
Submit your RFQ for AGB208 and get a quote within 24 hours.
