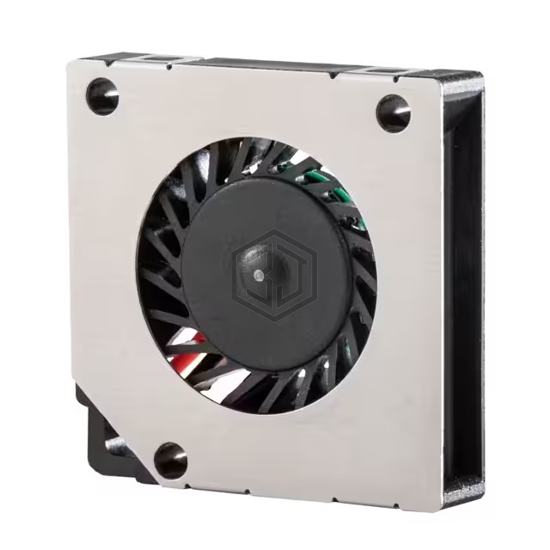

AGB204 - Pelonis Technologies - DC Brushless Fans (BLDC)

AGB204

Pelonis Technologies

20X20X4MM AIR-G SERIES 5V MICRO

AGB204 is a DC Brushless Fans (BLDC) manufactured by Pelonis Technologies. 20X20X4MM AIR-G SERIES 5V MICRO. Key specifications: operating temperature 14 ~ 140°F (-10 ~ 60°C), voltage - rated 5VDC, size / dimension Square - 20mm L x 20mm H, termination 2 Wire Leads.

In Stock: 100

Product Attributes

AttributeValue
Product StatusActive
Voltage - Rated5VDC
Size / DimensionSquare - 20mm L x 20mm H
Width4.00mm
Air Flow0.380 CFM (0.011m³/min)
Static Pressure0.235 in H2O (58.5 Pa)
Bearing TypeAxial Groove
Fan TypeMicro Blower
FeaturesLocked Rotor Protection, Auto Restart, Polarity Protection
Noise19.6dB(A)
Power (Watts)-
RPM11500 RPM
Termination2 Wire Leads
Ingress ProtectionIP58 - Dust Protected, Waterproof
Operating Temperature14 ~ 140°F (-10 ~ 60°C)
Approval AgencyCE
Weight0.005 lb (2.27 g)

Frequently Asked Questions

AGB204 is a DC Brushless Fans (BLDC) manufactured by Pelonis Technologies. 20X20X4MM AIR-G SERIES 5V MICRO

The operating temperature range of AGB204 is 14 ~ 140°F (-10 ~ 60°C).

The supply voltage of AGB204 is 5VDC.

The size of AGB204 is Square - 20mm L x 20mm H.
