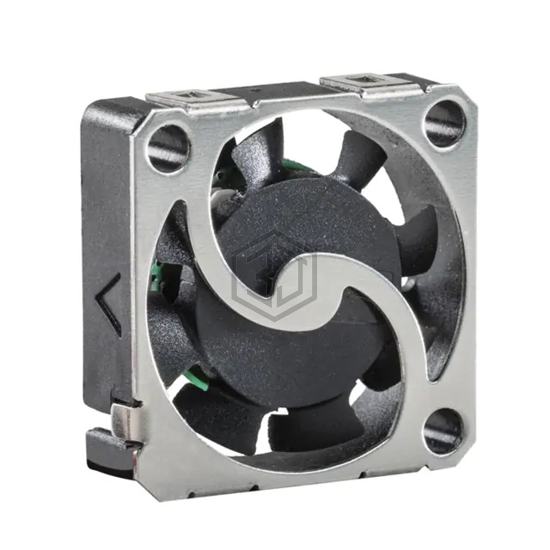

AGA154U - Pelonis Technologies - DC Brushless Fans (BLDC)

AGA154U

Pelonis Technologies

15X15X4MM AIR-G SERIES 3V MICRO

AGA154U is a DC Brushless Fans (BLDC) manufactured by Pelonis Technologies. 15X15X4MM AIR-G SERIES 3V MICRO. Key specifications: operating temperature 14 ~ 140°F (-10 ~ 60°C), voltage - rated 3VDC, size / dimension Square - 15mm L x 15mm H, termination 2 Wire Leads.

In Stock: 64

Product Attributes

AttributeValue
Product StatusActive
Voltage - Rated3VDC
Size / DimensionSquare - 15mm L x 15mm H
Width4.00mm
Air Flow0.120 CFM (0.003m³/min)
Static Pressure0.027 in H2O (6.7 Pa)
Bearing TypeAxial Groove
Fan TypeMicro Fan
FeaturesLocked Rotor Protection, Auto Restart, Polarity Protection
Noise14.6dB(A)
Power (Watts)-
RPM7500 RPM
Termination2 Wire Leads
Ingress ProtectionIP58 - Dust Protected, Waterproof
Operating Temperature14 ~ 140°F (-10 ~ 60°C)
Approval AgencyCE
Weight0.003 lb (1.36 g)

Frequently Asked Questions

AGA154U is a DC Brushless Fans (BLDC) manufactured by Pelonis Technologies. 15X15X4MM AIR-G SERIES 3V MICRO

The operating temperature range of AGA154U is 14 ~ 140°F (-10 ~ 60°C).

The supply voltage of AGA154U is 3VDC.

The size of AGA154U is Square - 15mm L x 15mm H.
