RF ANT 657.5MHZ DOME SMA PAN MT

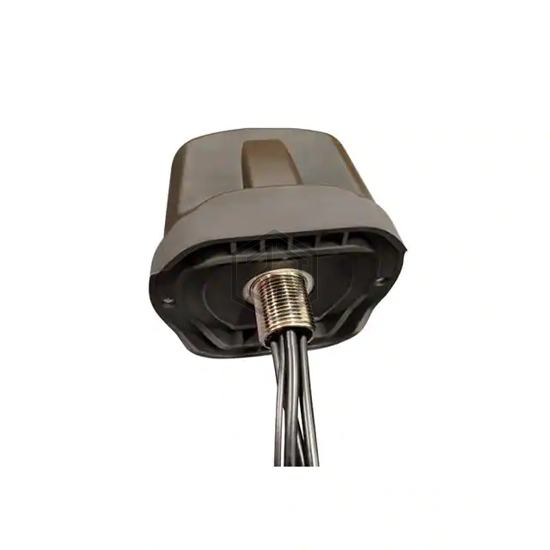

TRP-20INT-3-B is a RF Antennas manufactured by PCTEL, Inc.. RF ANT 657.5MHZ DOME SMA PAN MT. Key specifications: mounting type Panel Mount, termination SMA (2), power - max 25 W, frequency range 617MHz ~ 698MHz, 698MHz ~ 802MHz, 824MHz ~ 960MHz, 1.565GHz ~ 1.608GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.4GHz ~ 3.8GHz, 5.15GHz ~ 5.95GHz.
In Stock: 10
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular, Navigation |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 657.5MHz, 750MHz, 892MHz, 1.5865GHz, 1.955GHz, 2.495GHz, 3.6GHz, 5.55GHz |
| Frequency Range | 617MHz ~ 698MHz, 698MHz ~ 802MHz, 824MHz ~ 960MHz, 1.565GHz ~ 1.608GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.4GHz ~ 3.8GHz, 5.15GHz ~ 5.95GHz |
| Antenna Type | Dome |
| Number of Bands | 8 |
| VSWR | 1.4, 1.5, 1.6, 1.8, 2, 2.2 |
| Return Loss | - |
| Gain | 4dBi, 5dBi, 5.5dBi, -2dBic, 3dBic, 6.5dBi, 8.8dBi, 6.8dBi, 10.1dBi |
| Power - Max | 25 W |
| Features | Cable - 5.1816m |
| Termination | SMA (2) |
| Ingress Protection | - |
| Mounting Type | Panel Mount |
| Height (Max) | 3.460" (87.88mm) |
| Applications | 2G, 3G, 5G, Cellular, GNSS, GPS, LTE, Wi-Fi |
Submit your RFQ for TRP-20INT-3-B and get a quote within 24 hours.
