RF ANT 657.5MHZ MOD RP-SMA ADH

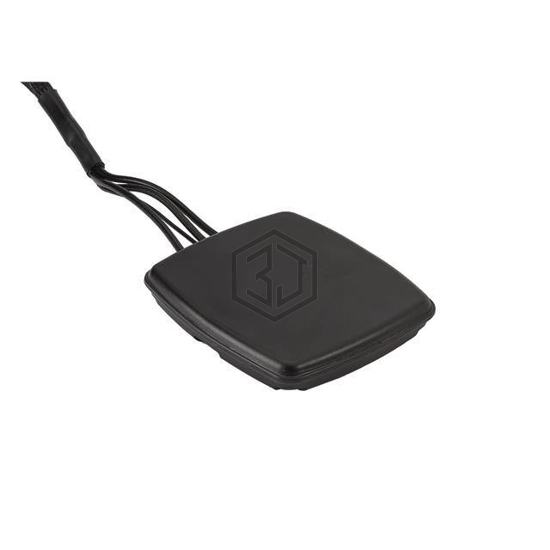

GNSMB-COV is a RF Antennas manufactured by PCTEL, Inc.. RF ANT 657.5MHZ MOD RP-SMA ADH. Key specifications: mounting type Adhesive, termination RP-SMA (1), SMA (2), ingress protection IP67, power - max 10 W.
In Stock: 8
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular, Navigation, WiFi |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 825MHz, 1.5845GHz, 2.205GHz, 2.5GHz, 2.4475GHz, 5.3675GHz |
| Frequency Range | 1.561GHz ~ 1.608GHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz, 2.4GHz ~ 2.495GHz, 4.91GHz ~ 5.825GHz |
| Antenna Type | Module |
| Number of Bands | 6 |
| VSWR | 2 |
| Return Loss | - |
| Gain | 4dBi, 3dBic, -2dBic, 5dBi, 4dBi, 6dBi |
| Power - Max | 10 W |
| Features | Cable - 5.1816m |
| Termination | RP-SMA (1), SMA (2) |
| Ingress Protection | IP67 |
| Mounting Type | Adhesive |
| Height (Max) | 0.984" (25.00mm) |
| Applications | Beidou, Galileo, GLONASS, GNSS, GPS, LTE, Wi-Fi |
Submit your RFQ for GNSMB-COV and get a quote within 24 hours.
