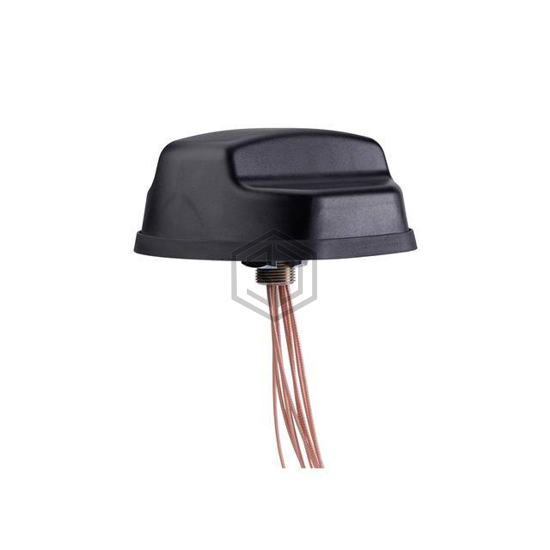

RF ANT 657.5MHZ MOD RP-SMA M PAN
GL9X1AX-SF is a RF Antennas manufactured by PCTEL, Inc.. RF ANT 657.5MHZ MOD RP-SMA M PAN. Key specifications: mounting type Panel Mount, termination RP-SMA Male (1), SMA Male (2), ingress protection IP67, power - max 50 W.
In Stock: 30
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular, Navigation, WiFi |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 657.5MHz, 750MHz, 892MHz, 1.5865GHz, 1.955GHz, 2.495GHz, 2.45GHz, 3.6GHz, 5.4GHz, 5.55GHz |
| Frequency Range | 617MHz ~ 698MHz, 698MHz ~ 802MHz, 824MHz ~ 960MHz, 1.565GHz ~ 1.608GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 2.4GHz ~ 2.5GHz, 3.4GHz ~ 3.8GHz, 4.9GHz ~ 5.9GHz, 5.15GHz ~ 5.95GHz |
| Antenna Type | Module |
| Number of Bands | 10 |
| VSWR | 2 |
| Return Loss | - |
| Gain | -0.2dBi, 1.1dBi, 2.1dBi, 3dBic, -2dBic, 4.4dBi, 4.8dBi, 9.1dBi, 4.7dBi, 11.4dBi, 5.8dBi |
| Power - Max | 50 W |
| Features | Cable - 5.1816m |
| Termination | RP-SMA Male (1), SMA Male (2) |
| Ingress Protection | IP67 |
| Mounting Type | Panel Mount |
| Height (Max) | 3.012" (76.50mm) |
| Applications | 2G, 3G, 5G, Bluetooth, Cellular, GNSS, GPS, LTE |
Submit your RFQ for GL9X1AX-SF and get a quote within 24 hours.
