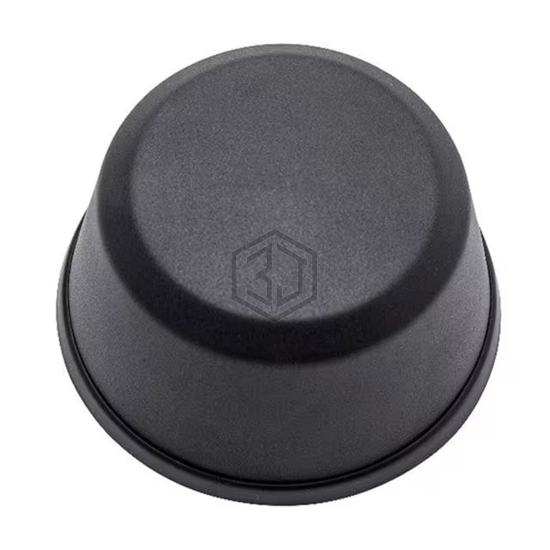

710258
RF ANT 789MHZ MODULE SMA M
710258 is a RF Antennas manufactured by PCTEL, Inc.. RF ANT 789MHZ MODULE SMA M. Key specifications: mounting type Screw Mount, termination SMA Male, ingress protection IP6K9K, power - max 10 W.
In Stock: 3,523
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 789MHz, 920MHz, 1.795GHz, 2.045GHz, 2.595GHz, 3.6GHz |
| Frequency Range | 698MHz ~ 880MHz, 880MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.92GHz ~ 2.17GHz, 2.5GHz ~ 2.69GHz, 3.4GHz ~ 3.8GHz |
| Antenna Type | Module |
| Number of Bands | 6 |
| VSWR | 2, 2.5 |
| Return Loss | - |
| Gain | 4.5dBi, 5dBi, 5dBi, 4.5dBi, 3.5dBi, 7dBi |
| Power - Max | 10 W |
| Features | Cable - 500mm |
| Termination | SMA Male |
| Ingress Protection | IP6K9K |
| Mounting Type | Screw Mount |
| Height (Max) | 2.165" (55.00mm) |
| Applications | 2G, 3G, 4G, 5G |
Frequently Asked Questions
710258 is a RF Antennas manufactured by PCTEL, Inc.. RF ANT 789MHZ MODULE SMA M
The mounting type of 710258 is Screw Mount.
The termination type of 710258 is SMA Male.
The protection rating of 710258 is IP6K9K.
