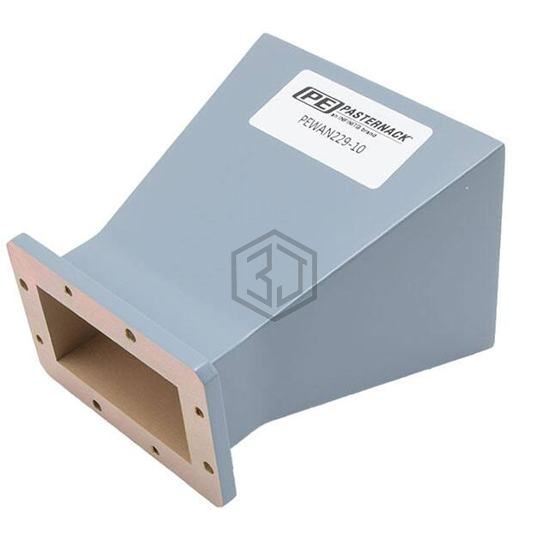

PEWAN229-10
WR229 GAIN HORN 3.3-4.9GHZ 10DBI
PEWAN229-10 is a RF Antennas manufactured by Pasternack. WR229 GAIN HORN 3.3-4.9GHZ 10DBI. Key specifications: mounting type Waveguide Flange Mount, frequency range 3.3GHz ~ 4.9GHz.
In Stock: 2
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Waveguide |
| Frequency Group | S-C Band (2GHz ~ 8GHz) |
| Frequency (Center/Band) | 4.1GHz |
| Frequency Range | 3.3GHz ~ 4.9GHz |
| Antenna Type | Horn |
| Number of Bands | 1 |
| VSWR | 1.3 |
| Return Loss | - |
| Gain | 10dBi |
| Power - Max | - |
| Features | - |
| Termination | - |
| Ingress Protection | - |
| Mounting Type | Waveguide Flange Mount |
| Height (Max) | - |
| Applications | - |
Frequently Asked Questions
PEWAN229-10 is a RF Antennas manufactured by Pasternack. WR229 GAIN HORN 3.3-4.9GHZ 10DBI
The mounting type of PEWAN229-10 is Waveguide Flange Mount.
The frequency of PEWAN229-10 is 3.3GHz ~ 4.9GHz.
