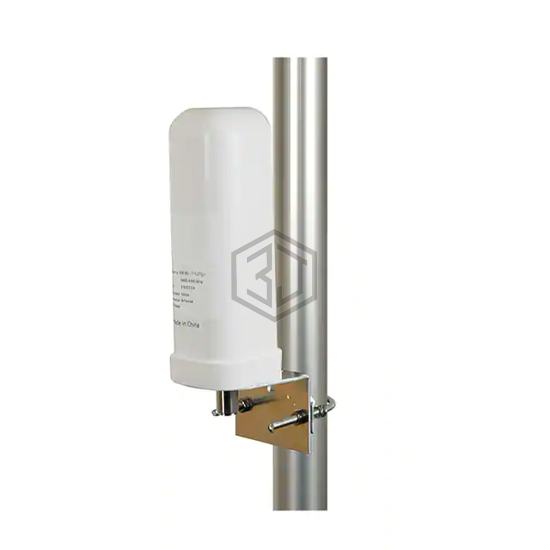

3-4DBI LPIM OMNI .6-4.2GHZ N(F)
PE51OM1031 is a RF Antennas manufactured by Pasternack. 3-4DBI LPIM OMNI .6-4.2GHZ N(F). Key specifications: mounting type Bracket Mount, termination N Type Female, power - max 50 W, frequency range 704MHz ~ 960MHz, 1.574GHz ~ 1.576GHz, 1.71GHz ~ 2.2GHz, 2.496GHz ~ 2.69GHz.
In Stock: 7
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular, WiFi |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 752MHz, 883MHz, 2.205GHz, 3.8GHz |
| Frequency Range | 704MHz ~ 960MHz, 1.574GHz ~ 1.576GHz, 1.71GHz ~ 2.2GHz, 2.496GHz ~ 2.69GHz |
| Antenna Type | Module |
| Number of Bands | 4 |
| VSWR | 1.8 |
| Return Loss | - |
| Gain | 3.5dBi, 3dBi, 3.5dBi, 4dBi |
| Power - Max | 50 W |
| Features | - |
| Termination | N Type Female |
| Ingress Protection | - |
| Mounting Type | Bracket Mount |
| Height (Max) | 2.640" (67.06mm) |
| Applications | 5G, CBRS, CDMA, GSM, LTE, LPWAN, LoRA, LTE-M, NB-IoT, IoT, M2M, Wi-Fi |
Submit your RFQ for PE51OM1031 and get a quote within 24 hours.
