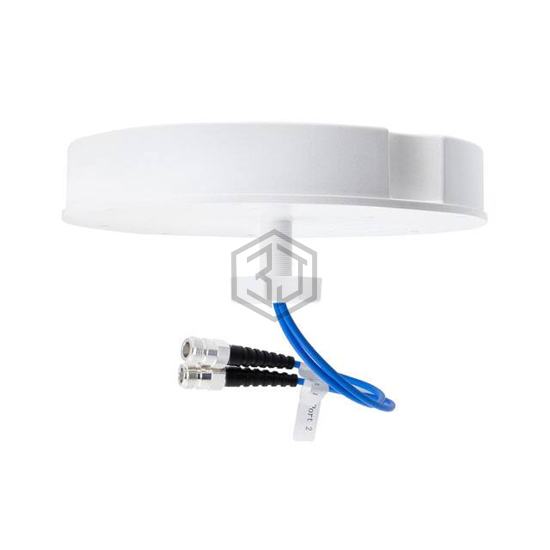

3-5 DBI OMNI LOW PIM 2 X N(F)
PE51222 is a RF Antennas manufactured by Pasternack. 3-5 DBI OMNI LOW PIM 2 X N(F). Key specifications: mounting type Ceiling Mount, termination N Type Female (2), power - max 50 W, frequency range 704MHz ~ 960MHz, 1.574GHz ~ 1.576GHz, 1.71GHz ~ 2.2GHz, 2.496GHz ~ 2.69GHz.
In Stock: 17
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 752MHz, 883MHz, 2.205GHz, 3.8GHz |
| Frequency Range | 704MHz ~ 960MHz, 1.574GHz ~ 1.576GHz, 1.71GHz ~ 2.2GHz, 2.496GHz ~ 2.69GHz |
| Antenna Type | Flat Panel |
| Number of Bands | 4 |
| VSWR | 2 |
| Return Loss | - |
| Gain | 3dBi, 3.5dBi, 4.5dBi, 5dBi |
| Power - Max | 50 W |
| Features | Cable - 300mm |
| Termination | N Type Female (2) |
| Ingress Protection | - |
| Mounting Type | Ceiling Mount |
| Height (Max) | 1.570" (39.88mm) |
| Applications | 5G, CDMA, GSM, LTE, LPWAN, LoRA, LTE-M, NB-IoT, IoT, M2M |
