1.5-6 DBI MIMO OMNI 2X4.3-10 (F)

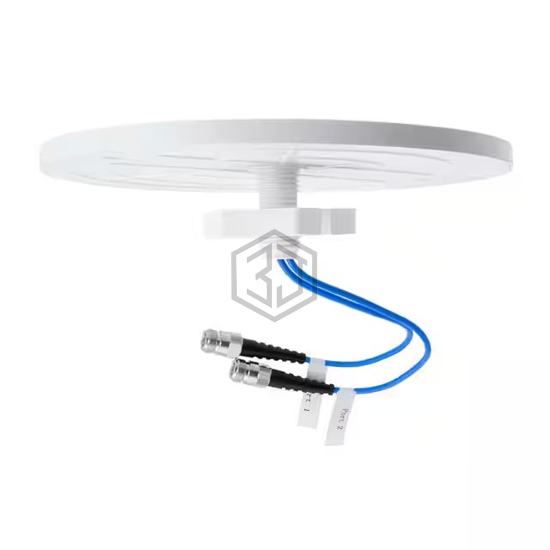

PE51221 is a RF Antennas manufactured by Pasternack. 1.5-6 DBI MIMO OMNI 2X4.3-10 (F). Key specifications: mounting type Ceiling Mount, termination N Type Female (2), power - max 50 W, frequency range 698MHz ~ 806MHz, 806MHz ~ 960MHz, 1.35GHz ~ 1.55GHz, 1.71GHz ~ 2.7GHz, 3.3GHz ~ 4.2GHz.
In Stock: 17
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 752MHz, 883MHz, 1.45GHz, 2.205GHz, 3.75GHz |
| Frequency Range | 698MHz ~ 806MHz, 806MHz ~ 960MHz, 1.35GHz ~ 1.55GHz, 1.71GHz ~ 2.7GHz, 3.3GHz ~ 4.2GHz |
| Antenna Type | Flat Panel |
| Number of Bands | 5 |
| VSWR | 2 |
| Return Loss | - |
| Gain | 1.5dBi, 2.2dBi, 3.5dBi, 4.5dBi, 6dBi |
| Power - Max | 50 W |
| Features | Cable - 340mm |
| Termination | N Type Female (2) |
| Ingress Protection | - |
| Mounting Type | Ceiling Mount |
| Height (Max) | 0.710" (18.03mm) |
| Applications | 5G, CDMA, GSM, LTE, LPWAN, LoRA, LTE-M, NB-IoT, IoT, M2M |
Submit your RFQ for PE51221 and get a quote within 24 hours.
