150V N-CHANNEL ENHANCEMENT MODE

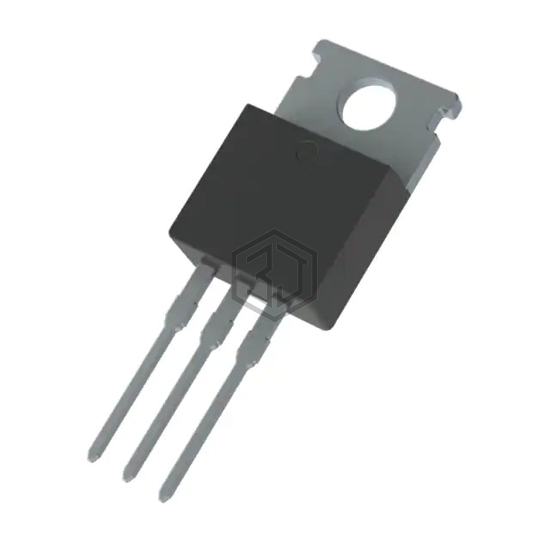

PSMP075N15NS1_T0_00601 is a Transistors - FETs, MOSFETs - Single manufactured by Panjit International Inc.. 150V N-CHANNEL ENHANCEMENT MODE. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-220-3.
In Stock: 2,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 150 V |
| Current - Continuous Drain (Id) @ 25°C | 125A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 7V, 10V |
| Rds On (Max) @ Id, Vgs | 7.5mOhm @ 50A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 97 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 6511 pF @ 75 V |
| FET Feature | - |
| Power Dissipation (Max) | 258.6W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-220AB-L |
| Package / Case | TO-220-3 |
Submit your RFQ for PSMP075N15NS1_T0_00601 and get a quote within 24 hours.
