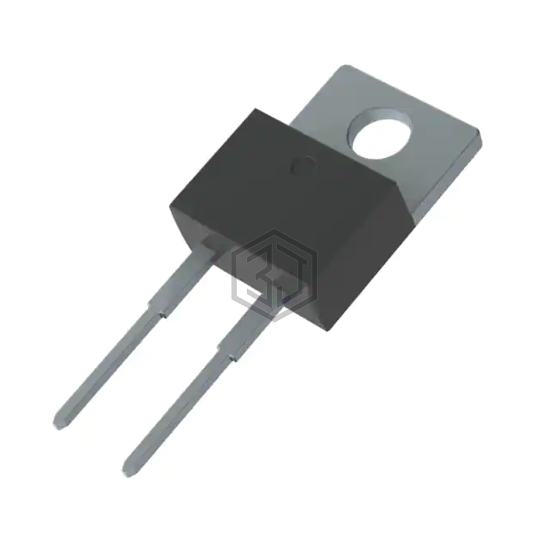

PCDP1065G1_T0_00001
TO-220AC, SIC
PCDP1065G1_T0_00001 is a Diodes - Rectifiers - Single manufactured by Panjit International Inc.. TO-220AC, SIC. Key specifications: mounting type Through Hole, package / case TO-220-2.
In Stock: 1,980
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Diode Type | Silicon Carbide Schottky |
| Voltage - DC Reverse (Vr) (Max) | 650 V |
| Current - Average Rectified (Io) | 10A (DC) |
| Voltage - Forward (Vf) (Max) @ If | 1.7 V @ 10 A |
| Speed | No Recovery Time > 500mA (Io) |
| Reverse Recovery Time (trr) | 0 ns |
| Current - Reverse Leakage @ Vr | 70 µA @ 650 V |
| Capacitance @ Vr, F | 364pF @ 1V, 1MHz |
| Mounting Type | Through Hole |
| Package / Case | TO-220-2 |
| Supplier Device Package | TO-220AC |
| Operating Temperature - Junction | -55°C ~ 175°C |
Frequently Asked Questions
PCDP1065G1_T0_00001 is a Diodes - Rectifiers - Single manufactured by Panjit International Inc.. TO-220AC, SIC
The mounting type of PCDP1065G1_T0_00001 is Through Hole.
The package type of PCDP1065G1_T0_00001 is TO-220-2.
