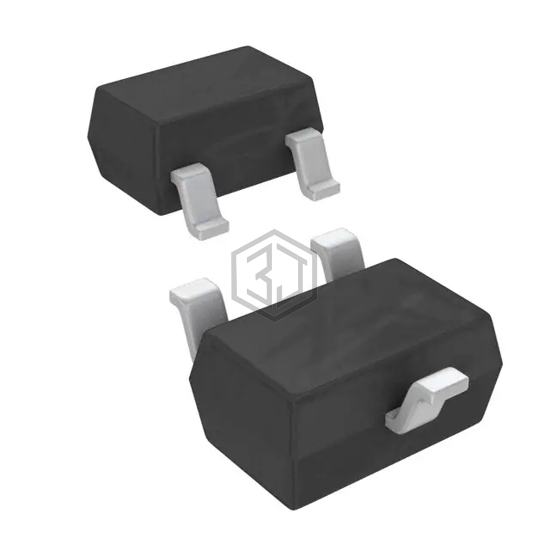

BAV70W_R1_00001
SOT-323, SWITCHING
BAV70W_R1_00001 is a Diodes - Rectifiers - Arrays manufactured by Panjit International Inc.. SOT-323, SWITCHING. Key specifications: mounting type Surface Mount, package / case SC-70, SOT-323.
In Stock: 8,420
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Diode Configuration | 1 Pair Common Cathode |
| Diode Type | Standard |
| Voltage - DC Reverse (Vr) (Max) | 75 V |
| Current - Average Rectified (Io) (per Diode) | 150mA |
| Voltage - Forward (Vf) (Max) @ If | 1.25 V @ 150 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 4 ns |
| Current - Reverse Leakage @ Vr | 2.5 µA @ 75 V |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Mounting Type | Surface Mount |
| Package / Case | SC-70, SOT-323 |
| Supplier Device Package | SOT-323 |
Frequently Asked Questions
BAV70W_R1_00001 is a Diodes - Rectifiers - Arrays manufactured by Panjit International Inc.. SOT-323, SWITCHING
The mounting type of BAV70W_R1_00001 is Surface Mount.
The package type of BAV70W_R1_00001 is SC-70, SOT-323.
