Panasonic Electronic Components
MOSFET N-CH 30V 20A/59A 8HSO

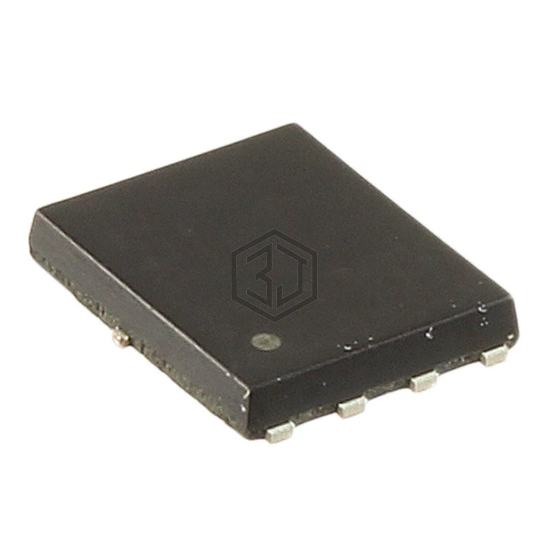

SK8603170L is a Transistors - FETs, MOSFETs - Single manufactured by Panasonic Electronic Components. MOSFET N-CH 30V 20A/59A 8HSO. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 8-PowerSMD, Flat Leads.
In Stock: 5,947
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 20A (Ta), 59A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 4.1mOhm @ 14A, 10V |
| Vgs(th) (Max) @ Id | 3V @ 2.56mA |
| Gate Charge (Qg) (Max) @ Vgs | 17 nC @ 4.5 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 2940 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 2.8W (Ta), 24W (Tc) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | HSO8-F4-B |
| Package / Case | 8-PowerSMD, Flat Leads |
Submit your RFQ for SK8603170L and get a quote within 24 hours.
