Panasonic Electronic Components
MOSFET N-CH 30V 26A/89A 8HSO

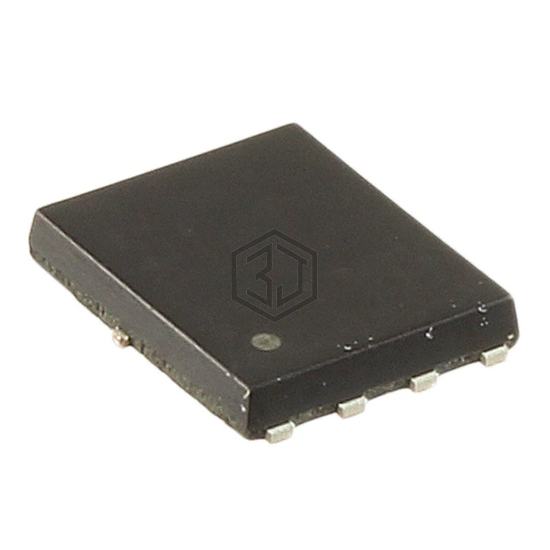

SK8603150L is a Transistors - FETs, MOSFETs - Single manufactured by Panasonic Electronic Components. MOSFET N-CH 30V 26A/89A 8HSO. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 8-PowerSMD, Flat Leads.
In Stock: 3,000
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 26A (Ta), 89A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 2.5mOhm @ 20A, 10V |
| Vgs(th) (Max) @ Id | 3V @ 4.38mA |
| Gate Charge (Qg) (Max) @ Vgs | 28 nC @ 4.5 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 5180 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 2.9W (Ta), 34W (Tc) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | HSO8-F4-B |
| Package / Case | 8-PowerSMD, Flat Leads |
Submit your RFQ for SK8603150L and get a quote within 24 hours.
