Panasonic Electronic Components

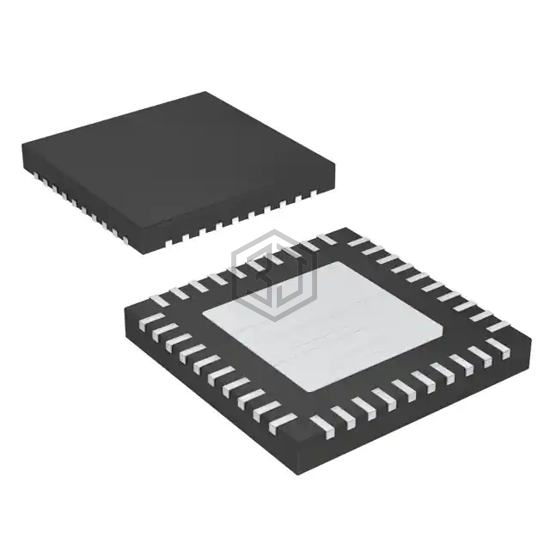

IC REG BUCK ADJUSTABLE 9A 40HQFN
NN30196A-VB is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Panasonic Electronic Components. IC REG BUCK ADJUSTABLE 9A 40HQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 40-WFQFN Exposed Pad, current - output 9A.
In Stock: 190
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 5.6V |
| Voltage - Output (Min/Fixed) | 0.6V |
| Voltage - Output (Max) | 3.5V |
| Current - Output | 9A |
| Frequency - Switching | 500kHz, 1MHz, 2MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 40-WFQFN Exposed Pad |
| Supplier Device Package | 40-HQFN (6x6) |
NN30196A-VB is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TPS543820RPYR | Texas Instruments | 4-V TO 18-V, 8-A SYNCHRONOUS SWI | 67% | View |
| LTC3311JV-1#TRMPBF | Analog Devices Inc. | 10A LOW VLTG SYNCH STEP-DWN SILN | 67% | View |
| NCP3230MNTXG | onsemi | IC REG BUCK ADJUSTABLE 30A 40QFN | 63% | View |
| TPS565208DDCT | Texas Instruments | IC REG BUCK ADJ 5A TSOT23-6 | 58% | View |
| RT7295AGJ6F | Richtek USA Inc. | IC REG BUCK ADJ 3.5A TSOT23-6 | 58% | View |
| NCP3284AMNTXG | onsemi | 4.5V TO 18V, 30A(NCP3284)/ 35A(N | 57% | View |
Submit your RFQ for NN30196A-VB and get a quote within 24 hours.
