Panasonic Electronic Components

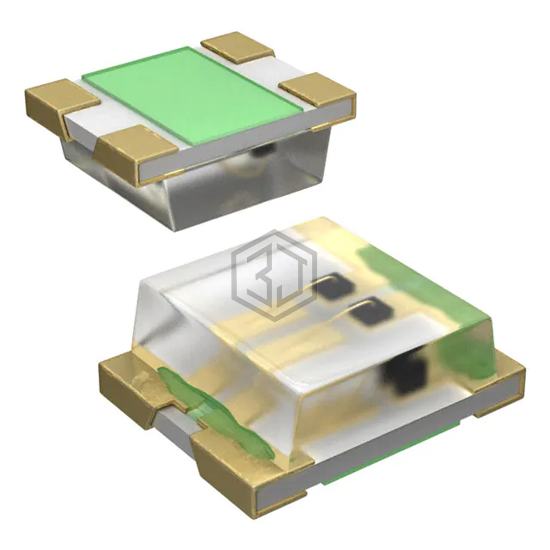

LED GREEN/ORANGE TSS-2 TYPE SMD
LNJ115W8RRA1 is a LED Indication - Discrete manufactured by Panasonic Electronic Components. LED GREEN/ORANGE TSS-2 TYPE SMD. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 2.03V Green, 2V Orange, package / case 0605 (1613 Metric), color Green, Orange.
In Stock: 1,625
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Color | Green, Orange |
| Configuration | Independent |
| Lens Color | - |
| Lens Transparency | - |
| Millicandela Rating | 15mcd Green, 32mcd Orange |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.10mm x 1.25mm |
| Voltage - Forward (Vf) (Typ) | 2.03V Green, 2V Orange |
| Current - Test | 10mA Green, 10mA Orange |
| Viewing Angle | - |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 572nm Green, 620nm Orange |
| Wavelength - Peak | 575nm Green, 630nm Orange |
| Features | - |
| Package / Case | 0605 (1613 Metric) |
| Supplier Device Package | TSS-2 Type |
| Size / Dimension | 1.60mm L x 1.25mm W |
| Height (Max) | 0.65mm |
Submit your RFQ for LNJ115W8RRA1 and get a quote within 24 hours.
