Panasonic Electronic Components
CAP FILM 8UF 10% 210VAC CHAS MT

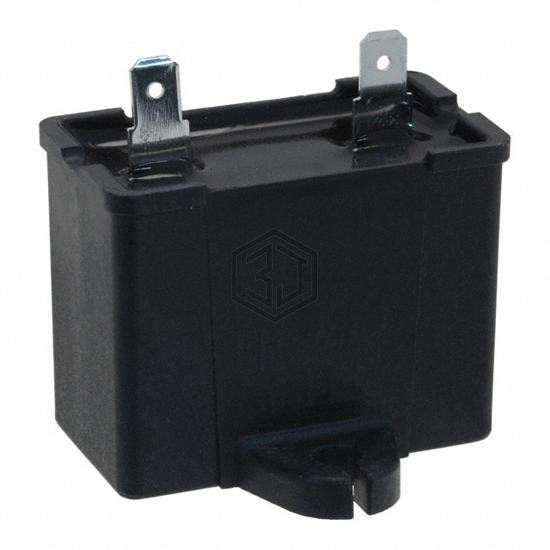

JS211805-AA is a Film Capacitors manufactured by Panasonic Electronic Components. CAP FILM 8UF 10% 210VAC CHAS MT. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 70°C, voltage rating - ac 210V, package / case Rectangular Box.
In Stock: 9,959
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 8 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 210V |
| Voltage Rating - DC | - |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -25°C ~ 70°C |
| Mounting Type | Chassis Mount |
| Package / Case | Rectangular Box |
| Size / Dimension | 1.555" L x 0.866" W (39.50mm x 22.00mm) |
| Height - Seated (Max) | 1.220" (31.00mm) |
| Termination | Quick Connect - 0.187" (4.7mm) |
| Lead Spacing | - |
| Applications | Motor Run |
| Ratings | - |
| Features | - |
JS211805-AA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PMB1704800KAP | Nichicon | FILM CAP BOXED LUGS | 88% | View |
| PMB1704800KBN | Nichicon | FILM CAP BOXED LUGS | 88% | View |
| PMB1704800KSL | Nichicon | FILM CAP BOXED LUGS | 88% | View |
| PMB1704800KSP | Nichicon | FILM CAP BOXED LUGS | 88% | View |
| C284ACR4800AL2J | KEMET | CAP FILM 8UF 5% 470VAC RADIAL | 86% | View |
| MKP386M580085YT8 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 8UF 5% 850VDC SCREW | 86% | View |
Submit your RFQ for JS211805-AA and get a quote within 24 hours.
