Panasonic Electronic Components
MOSFET N CH 33V 8A WMINI8-F1

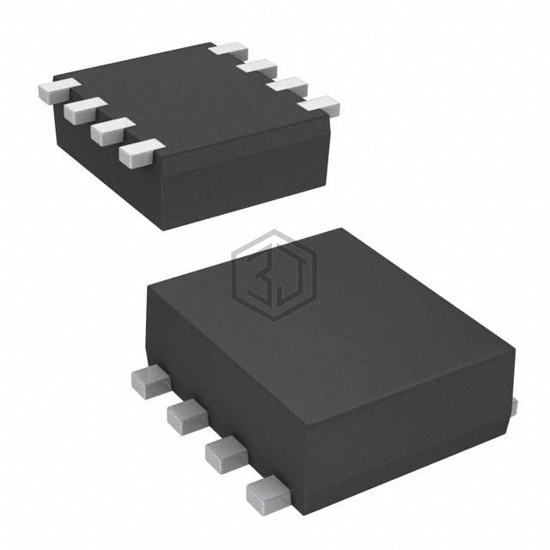

FK8V03050L is a Transistors - FETs, MOSFETs - Single manufactured by Panasonic Electronic Components. MOSFET N CH 33V 8A WMINI8-F1. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 8-SMD, Flat Lead.
In Stock: 2,351
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 33 V |
| Current - Continuous Drain (Id) @ 25°C | 8A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 15mOhm @ 4A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 730µA |
| Gate Charge (Qg) (Max) @ Vgs | 5.1 nC @ 4.5 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 520 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 1W (Ta) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | WMini8-F1 |
| Package / Case | 8-SMD, Flat Lead |
Submit your RFQ for FK8V03050L and get a quote within 24 hours.
