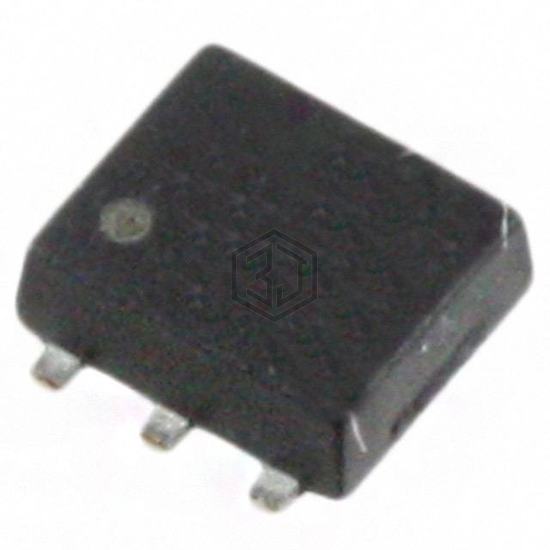

Panasonic Electronic Components
MOSFET N-CH 20V 4.5A WSMINI6
FK6K02010L is a Transistors - FETs, MOSFETs - Single manufactured by Panasonic Electronic Components. MOSFET N-CH 20V 4.5A WSMINI6. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 6-SMD, Flat Leads.
In Stock: 2,980
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 4.5A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4V |
| Rds On (Max) @ Id, Vgs | 17.5mOhm @ 2A, 4.5V |
| Vgs(th) (Max) @ Id | 1.3V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | - |
| Vgs (Max) | ±10V |
| Input Capacitance (Ciss) (Max) @ Vds | 1730 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 700mW (Ta) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | WSMini6-F1-B |
| Package / Case | 6-SMD, Flat Leads |
Submit your RFQ for FK6K02010L and get a quote within 24 hours.
