Panasonic Electronic Components
MOSFET N-CH 12V 2.3A ALGA004

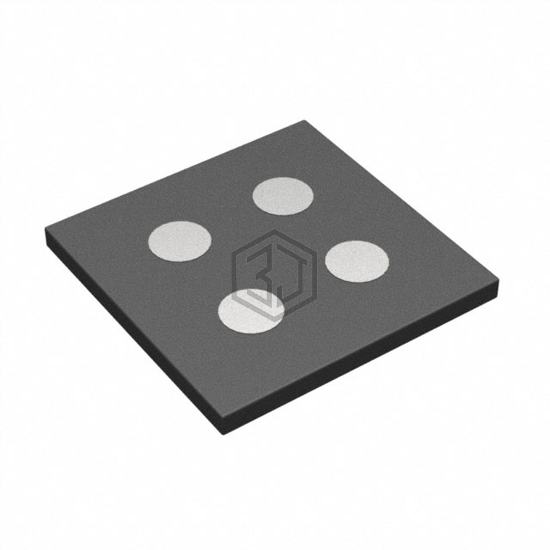

FK4B01110L1 is a Transistors - FETs, MOSFETs - Single manufactured by Panasonic Electronic Components. MOSFET N-CH 12V 2.3A ALGA004. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 4-XFLGA, CSP.
In Stock: 10
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 12 V |
| Current - Continuous Drain (Id) @ 25°C | 2.3A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.5V, 4.5V |
| Rds On (Max) @ Id, Vgs | 64mOhm @ 1.5A, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 118µA |
| Gate Charge (Qg) (Max) @ Vgs | 2.55 nC @ 4.5 V |
| Vgs (Max) | ±8V |
| Input Capacitance (Ciss) (Max) @ Vds | 274 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 340mW (Ta) |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | ALGA004-W-0606-RA01 |
| Package / Case | 4-XFLGA, CSP |
Submit your RFQ for FK4B01110L1 and get a quote within 24 hours.
