Panasonic Electronic Components

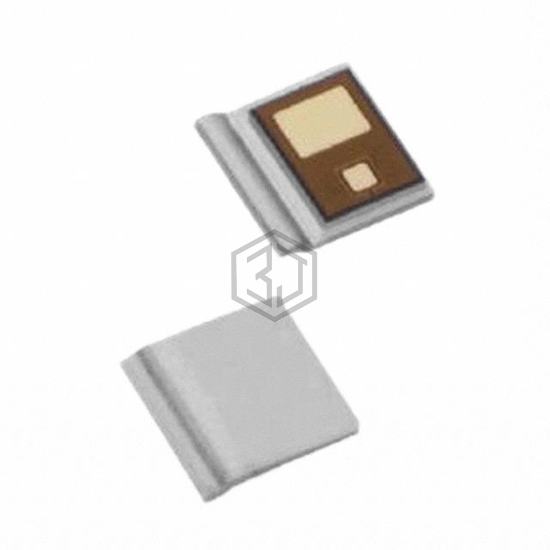

MOSFET N CH 24V 3A PMCP
FK3P02110L is a Transistors - FETs, MOSFETs - Single manufactured by Panasonic Electronic Components. MOSFET N CH 24V 3A PMCP. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 3-SMD, Non-Standard.
In Stock: 5,508
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 24 V |
| Current - Continuous Drain (Id) @ 25°C | 3A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V |
| Rds On (Max) @ Id, Vgs | 20mOhm @ 3A, 2.5V |
| Vgs(th) (Max) @ Id | 1.4V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | - |
| Vgs (Max) | ±12V |
| Input Capacitance (Ciss) (Max) @ Vds | 1500 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | - |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 3-PMCP |
| Package / Case | 3-SMD, Non-Standard |
Submit your RFQ for FK3P02110L and get a quote within 24 hours.
