Panasonic Electronic Components
CMC 100MA 2LN 12 OHM SMD

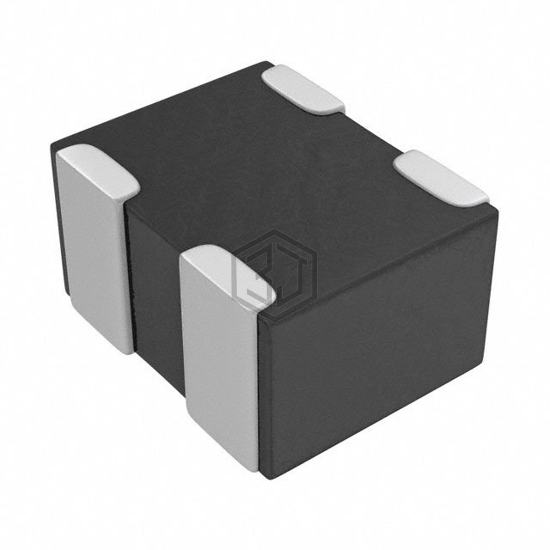

EXC-14CH120U is a Common Mode Chokes manufactured by Panasonic Electronic Components. CMC 100MA 2LN 12 OHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage rating - dc 5V, package / case 0302 (0806 Metric), 4 Lead.
In Stock: 2,257
| Attribute | Value |
|---|---|
| Product Status | Active |
| Filter Type | Signal Line |
| Number of Lines | 2 |
| Impedance @ Frequency | 12 Ohms @ 100 MHz |
| Inductance @ Frequency | - |
| Current Rating (Max) | 100mA |
| DC Resistance (DCR) (Max) | 1Ohm |
| Voltage Rating - DC | 5V |
| Voltage Rating - AC | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.033" L x 0.026" W (0.85mm x 0.65mm) |
| Height (Max) | 0.020" (0.50mm) |
| Package / Case | 0302 (0806 Metric), 4 Lead |
Submit your RFQ for EXC-14CH120U and get a quote within 24 hours.
