Panasonic Electronic Components
RES ARRAY 8 RES 270K OHM 1206

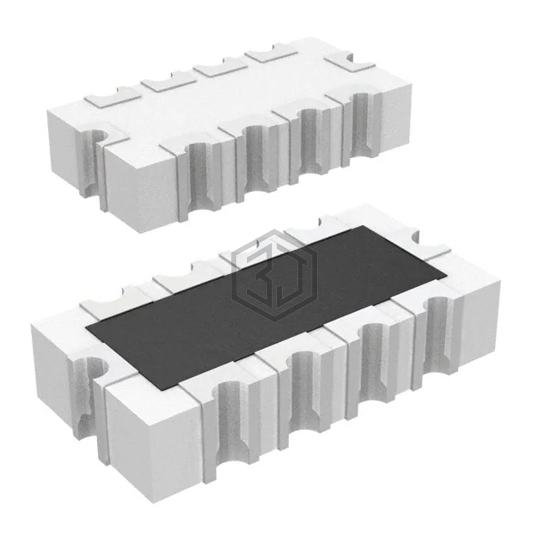

EXB-D10C274J is a Resistor Networks, Arrays manufactured by Panasonic Electronic Components. RES ARRAY 8 RES 270K OHM 1206. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case 1206 (3216 Metric), Concave, Long Side Terminals, size / dimension 0.126" L x 0.063" W (3.20mm x 1.60mm).
In Stock: 9,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Circuit Type | Bussed |
| Resistance (Ohms) | 270k |
| Tolerance | ±5% |
| Number of Resistors | 8 |
| Resistor Matching Ratio | - |
| Resistor-Ratio-Drift | - |
| Number of Pins | 10 |
| Power Per Element | 50mW |
| Temperature Coefficient | ±200ppm/°C |
| Operating Temperature | -55°C ~ 125°C |
| Applications | - |
| Mounting Type | Surface Mount |
| Package / Case | 1206 (3216 Metric), Concave, Long Side Terminals |
| Supplier Device Package | 1206 |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Height - Seated (Max) | 0.026" (0.65mm) |
Submit your RFQ for EXB-D10C274J and get a quote within 24 hours.
