Panasonic Electronic Components
RES ARRAY 8 RES 680K OHM 1506

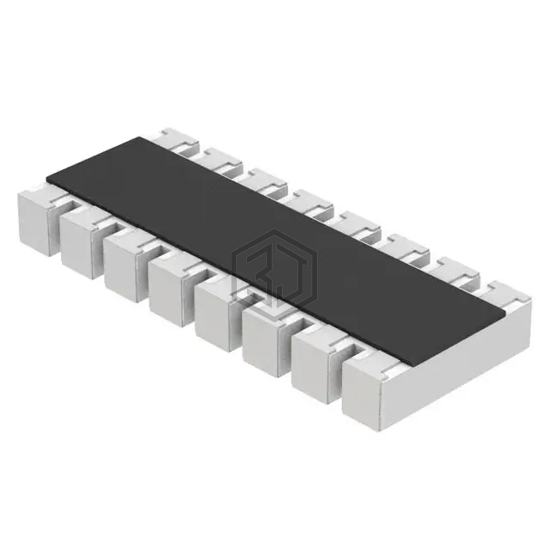

EXB-2HV684JV is a Resistor Networks, Arrays manufactured by Panasonic Electronic Components. RES ARRAY 8 RES 680K OHM 1506. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case 1506, Convex, Long Side Terminals, size / dimension 0.150" L x 0.063" W (3.80mm x 1.60mm).
In Stock: 8,800
| Attribute | Value |
|---|---|
| Product Status | Active |
| Circuit Type | Isolated |
| Resistance (Ohms) | 680k |
| Tolerance | ±5% |
| Number of Resistors | 8 |
| Resistor Matching Ratio | - |
| Resistor-Ratio-Drift | - |
| Number of Pins | 16 |
| Power Per Element | 62.5mW |
| Temperature Coefficient | ±200ppm/°C |
| Operating Temperature | -55°C ~ 125°C |
| Applications | Automotive AEC-Q200 |
| Mounting Type | Surface Mount |
| Package / Case | 1506, Convex, Long Side Terminals |
| Supplier Device Package | 1506 |
| Size / Dimension | 0.150" L x 0.063" W (3.80mm x 1.60mm) |
| Height - Seated (Max) | 0.022" (0.55mm) |
