Panasonic Electronic Components
RES ARRAY 4 RES 16 OHM 0804

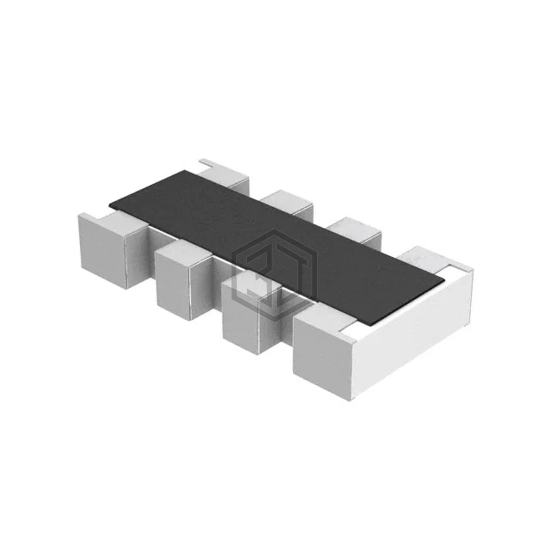

EXB-28V160JX is a Resistor Networks, Arrays manufactured by Panasonic Electronic Components. RES ARRAY 4 RES 16 OHM 0804. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case 0804, Convex, Long Side Terminals, size / dimension 0.079" L x 0.039" W (2.00mm x 1.00mm).
In Stock: 3,197
| Attribute | Value |
|---|---|
| Product Status | Active |
| Circuit Type | Isolated |
| Resistance (Ohms) | 16 |
| Tolerance | ±5% |
| Number of Resistors | 4 |
| Resistor Matching Ratio | - |
| Resistor-Ratio-Drift | - |
| Number of Pins | 8 |
| Power Per Element | 62.5mW |
| Temperature Coefficient | ±200ppm/°C |
| Operating Temperature | -55°C ~ 125°C |
| Applications | Automotive AEC-Q200 |
| Mounting Type | Surface Mount |
| Package / Case | 0804, Convex, Long Side Terminals |
| Supplier Device Package | 0804 |
| Size / Dimension | 0.079" L x 0.039" W (2.00mm x 1.00mm) |
| Height - Seated (Max) | 0.018" (0.45mm) |
Submit your RFQ for EXB-28V160JX and get a quote within 24 hours.
