Panasonic Electronic Components

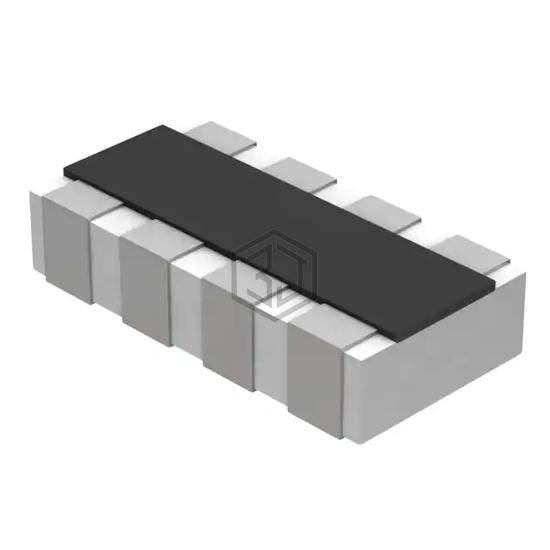

RES ARRAY 4 RES 560 OHM 0502
EXB-18V561JX is a Resistor Networks, Arrays manufactured by Panasonic Electronic Components. RES ARRAY 4 RES 560 OHM 0502. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case 0502 (1406 Metric), Long Side Terminals, size / dimension 0.055" L x 0.024" W (1.40mm x 0.60mm).
In Stock: 2,622
| Attribute | Value |
|---|---|
| Product Status | Active |
| Circuit Type | Isolated |
| Resistance (Ohms) | 560 |
| Tolerance | ±5% |
| Number of Resistors | 4 |
| Resistor Matching Ratio | - |
| Resistor-Ratio-Drift | - |
| Number of Pins | 8 |
| Power Per Element | 31mW |
| Temperature Coefficient | ±200ppm/°C |
| Operating Temperature | -55°C ~ 125°C |
| Applications | - |
| Mounting Type | Surface Mount |
| Package / Case | 0502 (1406 Metric), Long Side Terminals |
| Supplier Device Package | 0502 |
| Size / Dimension | 0.055" L x 0.024" W (1.40mm x 0.60mm) |
| Height - Seated (Max) | 0.018" (0.45mm) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| CAT16-561J4LF | Bourns Inc. | RES ARRAY 4 RES 560 OHM 1206 | 69% | View |
| YC324-JK-07560RL | YAGEO | RES ARRAY 4 RES 560 OHM 2012 | 69% | View |
| EXB-U38561JV | Panasonic Electronic Components | RES ARRAY | 69% | View |
| 768143561GPTR13 | CTS Resistor Products | RES ARRAY 7 RES 560 OHM 14SOIC | 59% | View |
| 741X1635600FP | CTS Resistor Products | RES ARRAY 8 RES 560 OHM 1506 | 56% | View |
| RP102PJ561CS | Samsung Electro-Mechanics | RESISTOR ARRAY CONVEX 0402X2R | 56% | View |
