Panasonic Electronic Components
RES ARRAY 4 RES 150 OHM 0502

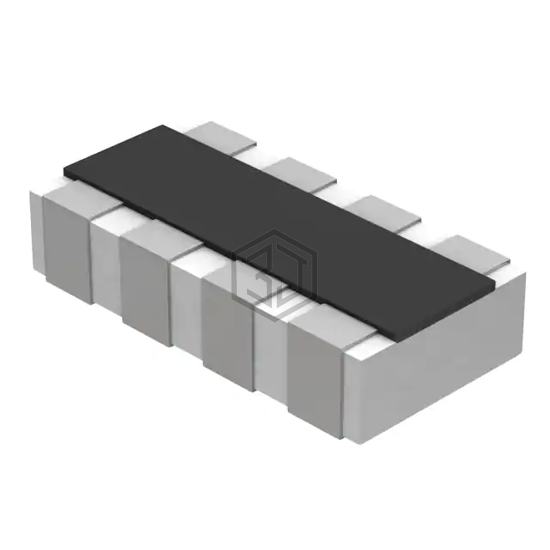

EXB-18V151JX is a Resistor Networks, Arrays manufactured by Panasonic Electronic Components. RES ARRAY 4 RES 150 OHM 0502. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case 0502 (1406 Metric), Long Side Terminals, size / dimension 0.055" L x 0.024" W (1.40mm x 0.60mm).
In Stock: 1,817
| Attribute | Value |
|---|---|
| Product Status | Active |
| Circuit Type | Isolated |
| Resistance (Ohms) | 150 |
| Tolerance | ±5% |
| Number of Resistors | 4 |
| Resistor Matching Ratio | - |
| Resistor-Ratio-Drift | - |
| Number of Pins | 8 |
| Power Per Element | 31mW |
| Temperature Coefficient | ±200ppm/°C |
| Operating Temperature | -55°C ~ 125°C |
| Applications | - |
| Mounting Type | Surface Mount |
| Package / Case | 0502 (1406 Metric), Long Side Terminals |
| Supplier Device Package | 0502 |
| Size / Dimension | 0.055" L x 0.024" W (1.40mm x 0.60mm) |
| Height - Seated (Max) | 0.018" (0.45mm) |
Submit your RFQ for EXB-18V151JX and get a quote within 24 hours.
