Panasonic Electronic Components
SWITCH TACTILE SPDT 0.02A 15V

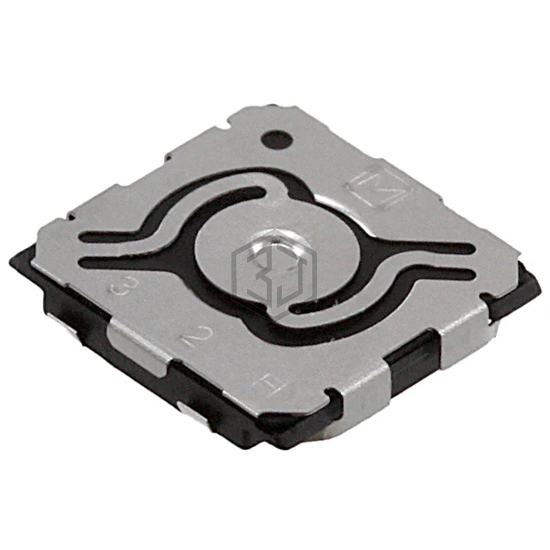

EVQ-Q04A10 is a Tactile Switches manufactured by Panasonic Electronic Components. SWITCH TACTILE SPDT 0.02A 15V. Key specifications: mounting type Surface Mount, operating temperature -20°C ~ 70°C, termination style J Lead, circuit SPST-NO x 2.
In Stock: 4,124
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Circuit | SPST-NO x 2 |
| Switch Function | Off-Mom-Mom |
| Contact Rating @ Voltage | 0.02A @ 15VDC |
| Actuator Type | Standard |
| Mounting Type | Surface Mount |
| Actuator Height off PCB, Vertical | 0.95mm |
| Actuator Length, Right Angle | - |
| Actuator Orientation | Top Actuated |
| Termination Style | J Lead |
| Outline | 6.00mm x 6.00mm |
| Illumination | Non-Illuminated |
| Illumination Type, Color | - |
| Illumination Voltage (Nominal) | - |
| Operating Force | 70/260gf |
| Ingress Protection | - |
| Features | Push Plate |
| Operating Temperature | -20°C ~ 70°C |
Submit your RFQ for EVQ-Q04A10 and get a quote within 24 hours.
