Panasonic Electronic Components

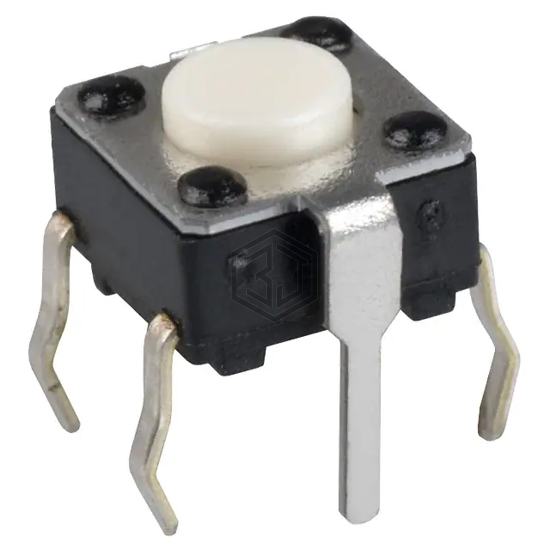

SWITCH TACTILE SPST-NO 0.02A 15V
EVQ-PBE04M is a Tactile Switches manufactured by Panasonic Electronic Components. SWITCH TACTILE SPST-NO 0.02A 15V. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 70°C, termination style PC Pin, circuit SPST-NO.
In Stock: 360
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Contact Rating @ Voltage | 0.02A @ 15VDC |
| Actuator Type | Standard |
| Mounting Type | Through Hole |
| Actuator Height off PCB, Vertical | 4.30mm |
| Actuator Length, Right Angle | - |
| Actuator Orientation | Top Actuated |
| Termination Style | PC Pin |
| Outline | 6.00mm x 6.00mm |
| Illumination | Non-Illuminated |
| Illumination Type, Color | - |
| Illumination Voltage (Nominal) | - |
| Operating Force | 160gf |
| Ingress Protection | - |
| Features | Grounding Pin |
| Operating Temperature | -20°C ~ 70°C |
Submit your RFQ for EVQ-PBE04M and get a quote within 24 hours.
