Panasonic Electronic Components
SWITCH TACTILE SPST-NO 0.05A 12V

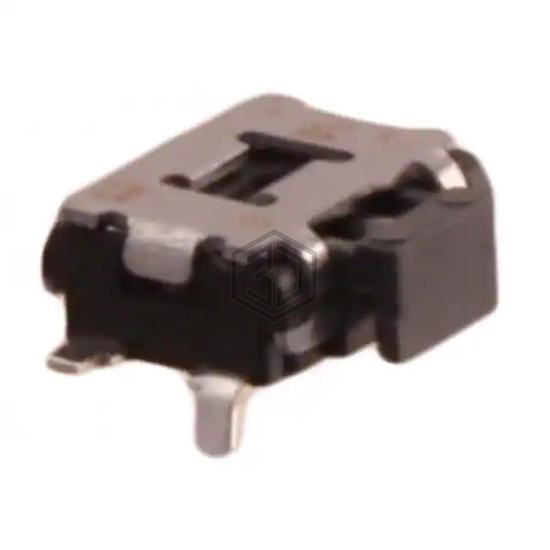

EVQ-9P701P is a Tactile Switches manufactured by Panasonic Electronic Components. SWITCH TACTILE SPST-NO 0.05A 12V. Key specifications: mounting type Surface Mount, Right Angle, operating temperature -20°C ~ 70°C, termination style Gull Wing, circuit SPST-NO.
In Stock: 107,919
| Attribute | Value |
|---|---|
| Product Status | Active |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Contact Rating @ Voltage | 0.05A @ 12VDC |
| Actuator Type | Rectangular Button |
| Mounting Type | Surface Mount, Right Angle |
| Actuator Height off PCB, Vertical | - |
| Actuator Length, Right Angle | - |
| Actuator Orientation | Side Actuated |
| Termination Style | Gull Wing |
| Outline | 4.70mm x 2.90mm |
| Illumination | Non-Illuminated |
| Illumination Type, Color | - |
| Illumination Voltage (Nominal) | - |
| Operating Force | 160gf |
| Ingress Protection | - |
| Features | - |
| Operating Temperature | -20°C ~ 70°C |
Submit your RFQ for EVQ-9P701P and get a quote within 24 hours.
