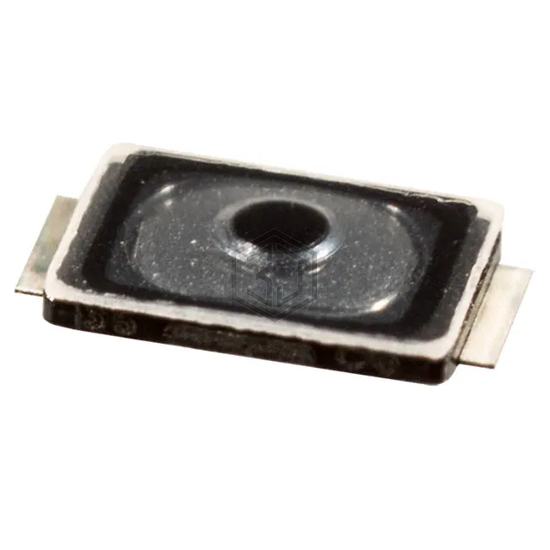

Panasonic Electronic Components
SWITCH TACTILE SPST-NO 0.02A 15V
EVP-AWED2A is a Tactile Switches manufactured by Panasonic Electronic Components. SWITCH TACTILE SPST-NO 0.02A 15V. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, termination style SMD (SMT) Tab, ingress protection IP67 - Dust Tight, Waterproof.
In Stock: 35,036
| Attribute | Value |
|---|---|
| Product Status | Active |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Contact Rating @ Voltage | 0.02A @ 15VDC |
| Actuator Type | Standard |
| Mounting Type | Surface Mount |
| Actuator Height off PCB, Vertical | 0.60mm |
| Actuator Length, Right Angle | - |
| Actuator Orientation | Top Actuated |
| Termination Style | SMD (SMT) Tab |
| Outline | 3.00mm x 2.00mm |
| Illumination | Non-Illuminated |
| Illumination Type, Color | - |
| Illumination Voltage (Nominal) | - |
| Operating Force | 330gf |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
Submit your RFQ for EVP-AWED2A and get a quote within 24 hours.
